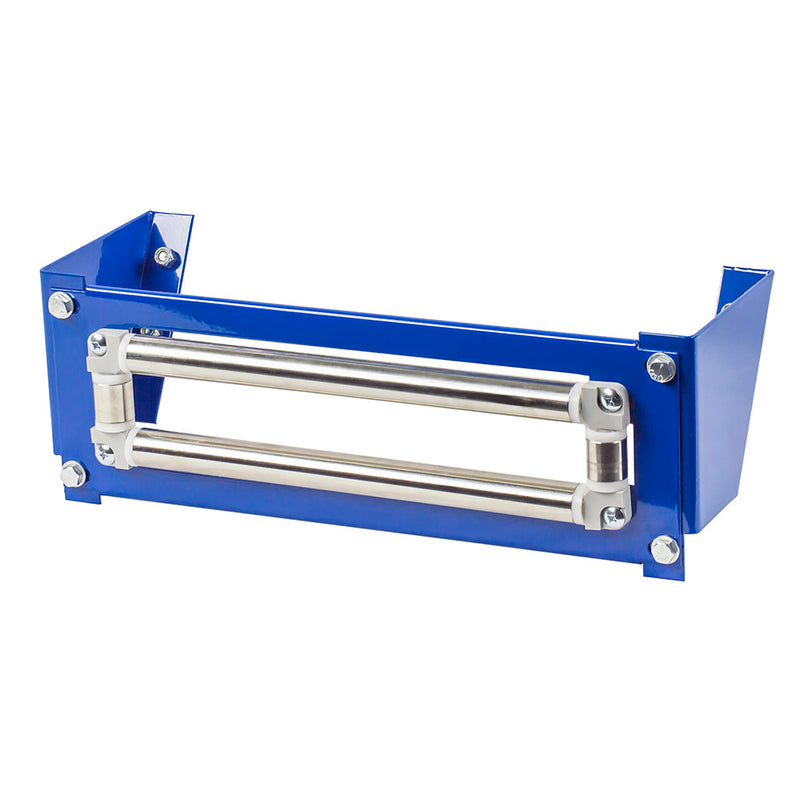

15354-22 by Coxreels | 4-Way Bottom Roller Bracket for Hand Crank & Motorized Hose Reels | 22" Drum Width | Fits 1125 Series | Steel

15354-22 by Coxreels | 4-Way Bottom Roller Bracket for Hand Crank & Motorized Hose Reels | 22" Drum Width | Fits 1125 Series | Steel

Save $49.52 Save $49.52
$203.08
$203.08 - $203.08
$203.08
$153.56
$153.56 - $153.56
$153.56
This Item has a 3 Week Lead Time.
Specifications for Variant SKU: 15354-22 Cox Reels
Series: 4-Way Bottom Roller Bracket Series
Material(s): Steel
Compatible with the following Series: 1125 Series

Coxreels 4-Way Bottom Roller Bracket

Bottom-rewind 4-way roller bracket for hand crank and motorized hose reels.

What are the main product features?
  • 4-way enclosed, pinch-proof 1" stainless steel rollers
  • Powder coated steel brackets
  • Sized by drum width (part-number suffix)

Which part numbers are available?

Order the part number whose drum width matches your reel's drum width.

-SS and -SP part numbers are the versions for the matching -SS / -SP stainless reel models.

Part Number Drum Width Version Fits
15037-7.5 7.5" Standard 1175
15037-11.5 11.5" Standard 1175, Storage
15037-11.5-SP 11.5" -SP 1175-SS
15037-11.5-SS 11.5" -SS 1175-SS
15037-13.5 13.5" Standard 1175
15037-15.5 15.5" Standard 1175
15037-20 20" Standard 1175, Storage
15037-20-SP 20" -SP 1175-SS
15037-20-SS 20" -SS 1175-SS
15354-6 6" Standard 1125 Pure Flow, 1125, 1125WCL, HP1125
15354-6-SP 6" -SP 1125-SS
15354-6-SS 6" -SS 1125-SS
15354-8 8" Standard 1125 Pure Flow, 1125PCL, 1275, 1275HP, 1275W
15354-9.5 9.5" Standard 1125
15354-12 12" Standard 1125 Pure Flow, 1125, 1125WCL, 1275, 1275HP, 1275W, HP1125, Storage
15354-12-SP 12" -SP 1125-SS
15354-12-SS 12" -SS 1125-SS
15354-13.5 13.5" Standard 1275
15354-15.5 15.5" Standard 1125
15354-18 18" Standard 1125, 1275, 1275W, HP1125, Storage
15354-20 20" Standard 1275
15354-22 22" Standard 1125
15354-24 24" Standard 1125, 1275, 1275W, HP1125
15354-24-SP 24" -SP 1125-SS
15354-24-SS 24" -SS 1125-SS
15354-28 28" Standard 1125, HP1125, Storage
15370-1-11.5 11.5" Standard 1185, 1185-BUXX
15370-1-15.5 15.5" Standard 1185, 1185-BUXX
15370-1-20 20" Standard 1185, 1185-BUXX, Storage
15370-1-25 25" Standard 1185, 1185-BUXX
15370-1-33 33" Standard 1185, 1185-BUXX, Storage
15370-9.5 9.5" Standard 1195, 1195-BUXX
15370-13.5 13.5" Standard 1195, 1195-BUXX
15370-17.5 17.5" Standard 1195, 1195-BUXX
15370-20 20" Standard 1195, 1195-BUXX
15370-24 24" Standard 1195, 1195-BUXX
15370-32 32" Standard 1195, 1195-BUXX

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
