15359-18 by Coxreels | 3-Way Top Roller Bracket for Hand Crank & Motorized Hose Reels | 18" Drum Width | Steel

15359-18 by Coxreels | 3-Way Top Roller Bracket for Hand Crank & Motorized Hose Reels | 18" Drum Width | Steel

Save $66.05 Save $66.05
$385.43
$385.43 - $385.43
$385.43
$319.38
$319.38 - $319.38
$319.38
This Item has a 3 Week Lead Time.
Specifications for Variant SKU: 15359-18 Cox Reels
Series: 3-Way Top Roller Bracket Series
Material(s): Steel
Compatible with the following Series: 1125 Series  |   1275 Series  |   1275W Series  |   HP1125 Series  |   Storage Series

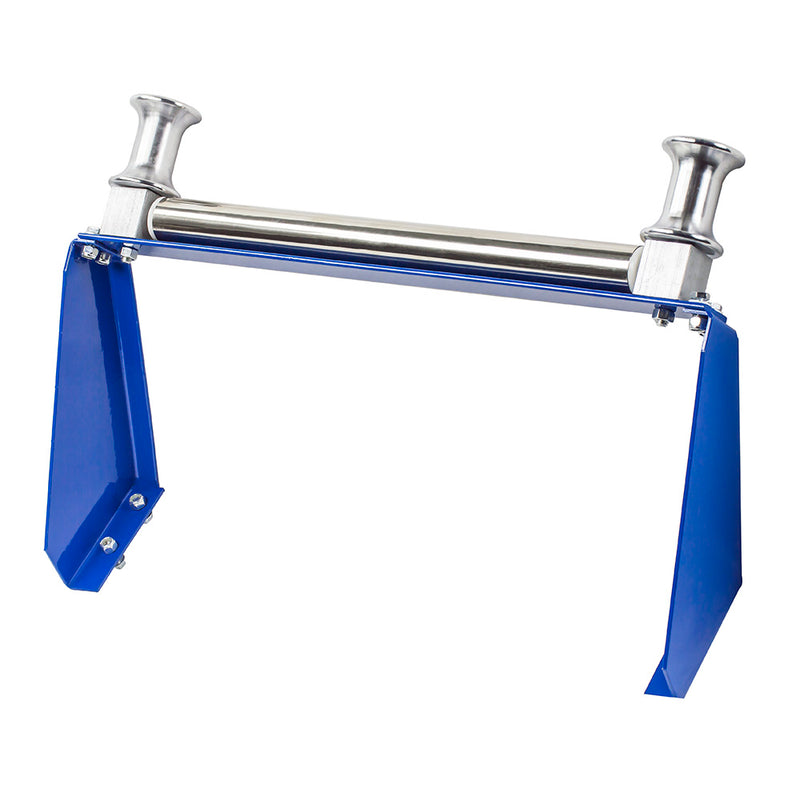

Coxreels 3-Way Top Roller Bracket

Top-rewind 3-way open-spool roller bracket for hand crank and motorized hose reels.

What are the main product features?
  • 1.5" chrome-plated machined steel spools
  • 1.5" stainless steel bottom roller
  • Powder coated steel brackets; sized by drum width

Which part numbers are available?

Order the part number whose drum width matches your reel's drum width.

Part Number Drum Width Fits
15359-6 6" 1125 Pure Flow, 1125, 1125WCL, HP1125
15359-8 8" 1125 Pure Flow, 1125PCL, 1275, 1275HP, 1275W
15359-9.5 9.5" 1125
15359-12 12" 1125 Pure Flow, 1125, 1125WCL, 1275, 1275HP, 1275W, HP1125, Storage
15359-15.5 15.5" 1125
15359-18 18" 1125, 1275, 1275W, HP1125, Storage
15359-20 20" 1275
15359-22 22" 1125
15359-24 24" 1125, 1275, 1275W, HP1125
15359-28 28" 1125, HP1125, Storage
15360-7.5 7.5" 1175
15360-11.5 11.5" 1175, 1185, 1185-BUXX, Storage
15360-13.5 13.5" 1175
15360-15.5 15.5" 1175, 1185, 1185-BUXX
15360-20 20" 1175, 1185, 1185-BUXX, Storage
15360-25 25" 1185, 1185-BUXX
15360-33 33" 1185, 1185-BUXX
15361-20 20" Storage
15361-33 33" Storage

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
