15362-24 by Coxreels | 3-Way Bottom Roller Bracket for Hand Crank & Motorized Hose Reels | 24" Drum Width | Steel

15362-24 by Coxreels | 3-Way Bottom Roller Bracket for Hand Crank & Motorized Hose Reels | 24" Drum Width | Steel

Save $86.21 Save $86.21
$377.59
$377.59 - $377.59
$377.59
$291.38
$291.38 - $291.38
$291.38
This Item has a 3 Week Lead Time.
Specifications for Variant SKU: 15362-24 Cox Reels
Series: 3-Way Bottom Roller Bracket Series
Material(s): Steel
Compatible with the following Series: 1125 Series  |   1275 Series  |   1275W Series  |   HP1125 Series

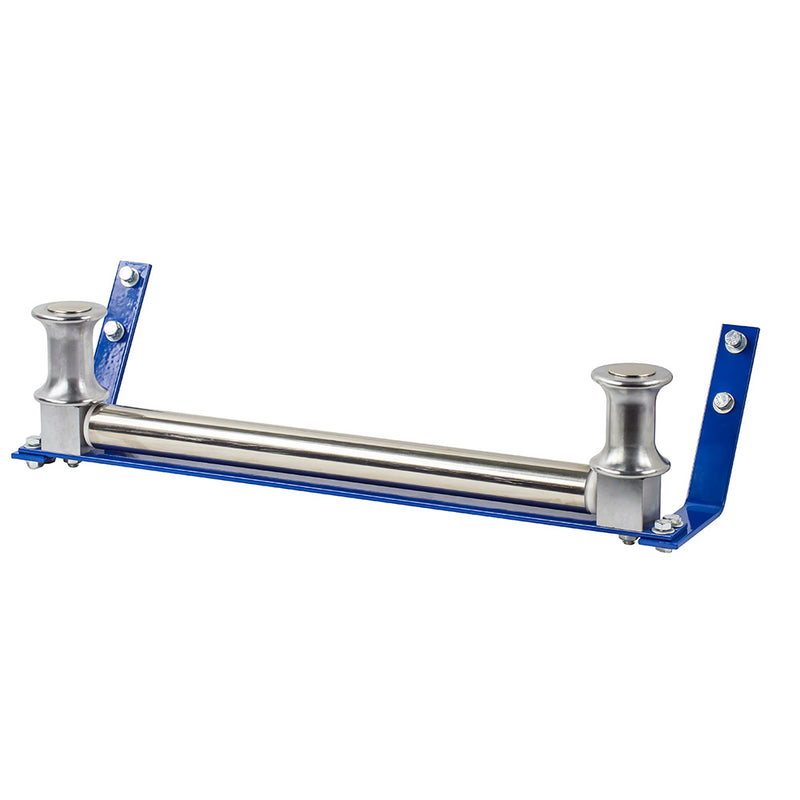

Coxreels 3-Way Bottom Roller Bracket

Bottom-rewind 3-way open-spool roller bracket for hand crank and motorized hose reels.

What are the main product features?
  • 1.5" chrome-plated machined steel spools
  • 1.5" stainless steel bottom roller
  • Powder coated steel brackets; sized by drum width

Which part numbers are available?

Order the part number whose drum width matches your reel's drum width.

Part Number Drum Width Fits
15362-6 6" 1125 Pure Flow, 1125, 1125WCL, HP1125
15362-8 8" 1125 Pure Flow, 1125PCL, 1275, 1275HP, 1275W
15362-9.5 9.5" 1125
15362-12 12" 1125 Pure Flow, 1125, 1125WCL, 1275, 1275HP, 1275W, HP1125, Storage
15362-13.5 13.5" 1275
15362-15.5 15.5" 1125
15362-18 18" 1125, 1275, 1275W, HP1125, Storage
15362-20 20" 1275
15362-22 22" 1125
15362-24 24" 1125, 1275, 1275W, HP1125
15362-28 28" 1125, HP1125, Storage
15363-7.5 7.5" 1175
15363-11.5 11.5" 1175, 1185, 1185-BUXX, Storage
15363-13.5 13.5" 1175
15363-15.5 15.5" 1175, 1185, 1185-BUXX
15363-20 20" 1175, 1185, 1185-BUXX, Storage
15363-25 25" 1185, 1185-BUXX
15363-33 33" 1185, 1185-BUXX
15364-20 20" Storage
15364-33 33" Storage
