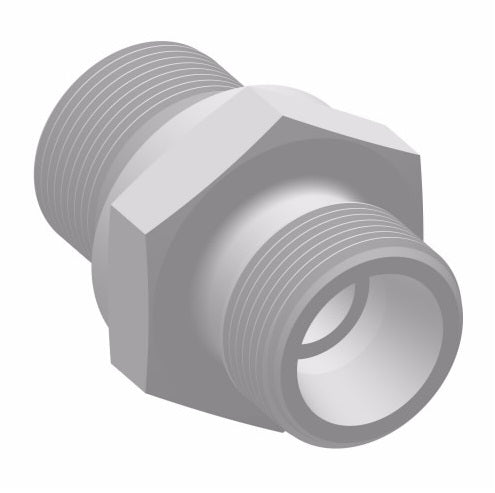

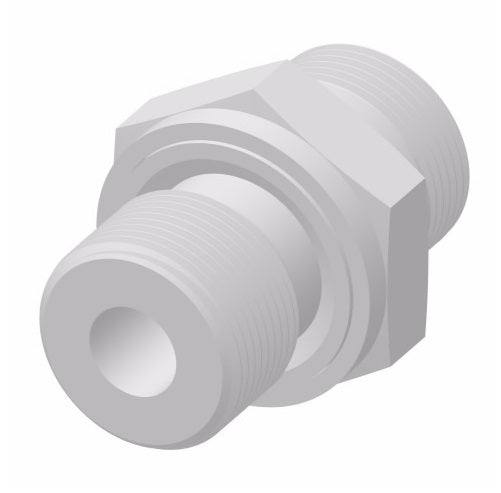

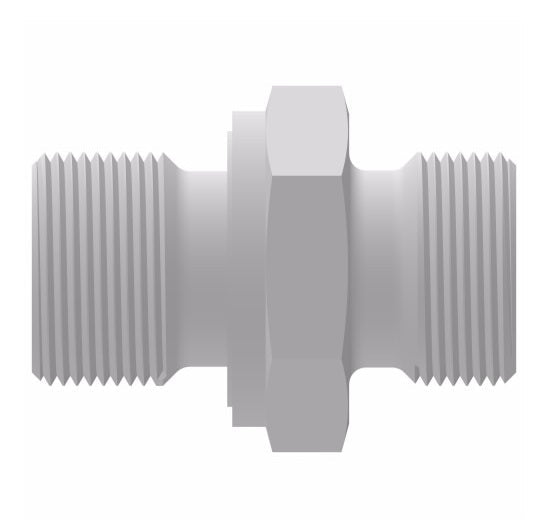

1568X8 by Danfoss | Compression Tube x Male Connector | 1/2" Tube OD x 3/8" Male Pipe | Nylon

1568X8 by Danfoss | Compression Tube x Male Connector | 1/2" Tube OD x 3/8" Male Pipe | Nylon

$0.00 - $0.00
$0.00
$3.74
$3.74 - $3.74
$3.74

Aeroquip® by Danfoss
Molded Compression Tube - Male Connector
Compression End x Male Pipe
Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1568X8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Compression, 3/8in Male NPT
Material(s): Nylon
Compatible with the following Series: PT200 Series  |   PT240 Series  |   TP160 Series
Features/Benefits:
  • Leak-free performance.
  • High integrity in both mechanical and acoustical vibrations.
  • Easy assembly - no special tools or tube preparation necessary.
  • Reliability in side-loaded applications allows for compact plumbing.
  • Connectors come fully assembled - for your convenience.
  • Very low resistance to media flow resulting from material and internal surfaces.
  • No metal parts to corrode or present a safety hazard with aggressive chemicals.
  • ISO 9001 Certified.
Materials:
  • Nylon Characteristics:
    • Good resistance to organic solvents, oils, and gasoline.
    • Excellent impact resistance.
    • Tolerant to repeated steam for wash down and longtime weathering.
    • F.D.A. and N.S.F. listed.
    • Operating temperatures: -40°F to 200°F (-40°C to 93°C) - not to exceed temperature specification of tubing.
  • Polypropylene Characteristics:
    • Good chemical and corrosion resistance.
    • Opaque.
    • 20% glass filled.
    • N.S.F. listed.
    • Operating temperatures: -30°F to 200°F (-34°C to 93°C) - not to exceed temperature specification of tubing.
Styles:
  • Ferrule Nut (integral nut and sleeve for soft tubing to 50 PSI*).
    • Features ferrule and nut molded as a single part, eliminating the need for a two-piece assembly.
  • Gripper Nut with separate plastic sleeve (for sure-grip with plastic tubing up to 220 PSI*).
    • For higher pressure applications.
Operating Temperatures:
  • Nylon:
    • -40°F to 200°F (-40°C to 93°C) - not to exceed temperature specification of tubing.
  • Polypropylene:
    • -30°F to 200°F (-34°C to 93°C) - not to exceed temperature specification of tubing.
Compatible Tubing:
  • For use with PT200, PT240, and TP160 plastic tubing.
  • Tube inserts are recommended for optimal performance with PT200 tubing.

* Operating temperatures of Eaton connectors are regulated by ambient and fluid temperatures, type of fluid being carried, tubing type and conditions of mechanical abuse. Pressures in excess of above specifications in all connector sizes should be tested by the customer in the particular application.
Tube OD 1/8"
(.125")		 1/4"
(.250")		 5/16"
(.312")		 3/8"
(.375")		 1/2"
(.500")		 5/8"
(.625")		 3/4"
(.750")
Tube Thread Size 5/16-24 7/16-20 1/2-20 5/8-20 3/4-20 7/8-20 1-1/16-20
Nylon
Part Number		 Nylon
with GRIPPER Nut
Part Number		 Polypropylene
Part Number		 Polypropylene
with GRIPPER Nut
Part Number		 Tube O.D. Male Pipe Thread L D Hex
C
1568X4 1568X4G 1568PX4 - 1/4" 1/8" 0.99" 0.26" 5/8"
1568X4X4 1568X4X4G 1568PX4X4 1568PX4X4G 1/4" 1/4" 1.17" 0.26" 5/8"
- - 1568PX4X6 1568PX4X6G 1/4" 3/8" 1.20" 0.26" 13/16"
- - 1568PX5 - 5/16" 1/8" 1.00" 0.32" 11/16"
1568X5X4 - 1568PX5X4 - 5/16" 1/4" 1.19" 0.32" 11/16"
1568X6X2 - 1568PX6X2 1568PX6X2G 3/8" 1/8" 1.14" 0.38" 13/16"
1568X6 1568X6G 1568PX6 1568PX6G 3/8" 1/4" 1.30" 0.38" 13/16"
1568X6X6 1568X6X6G 1568PX6X6 - 3/8" 3/8" 1.34" 0.38" 13/16"
1568X6X8 1568X6X8G 1568PX6X8 1568PX6X8G 3/8" 1/2" 1.59" 0.38" 59/64"
1568X8X2G - - 1/2" 1/8" 1.23" 0.51" 15/16"
1568X8X4 - 1568PX8X4 1568PX8X4G 1/2" 1/4" 1.42" 0.51" 15/16"
1568X8 1568X8G 1568PX8 1568PX8G 1/2" 3/8" 1.47" 0.51" 15/16"
1568X8X8 1568X8X8G 1568PX8X8 1568PX8X8G 1/2" 1/2" 1.61" 0.51" 15/16"
- 1568X10X6G - - 5/8" 3/8" 1.50" 0.63" 1-1/16"
- 1568X10G - 1568PX10G 5/8" 1/2" 1.66" 0.63" 1-1/16"
- - - 1568PX12X12G 3/4" 3/4" 1.92" 0.76" 1-5/16"
