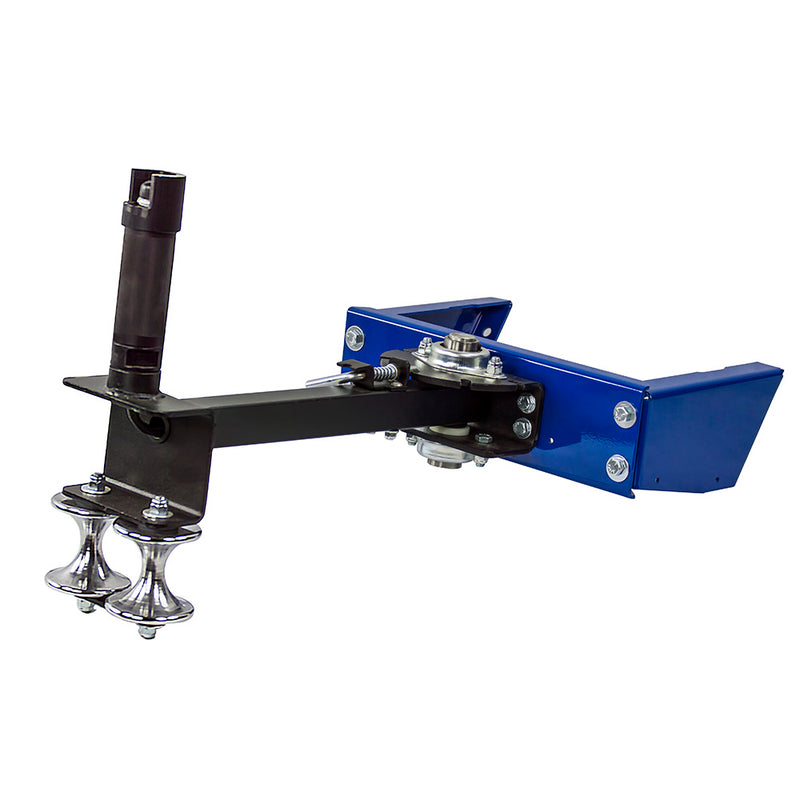

15730-33 by Coxreels | Heavy Duty Pivoting Hose Guide for Hand Crank & Motorized Hose Reels | Top Return, 33" Drum Width | Fits 1185, 1185-BUXX & Storage Series | Steel

15730-33 by Coxreels | Heavy Duty Pivoting Hose Guide for Hand Crank & Motorized Hose Reels | Top Return, 33" Drum Width | Fits 1185, 1185-BUXX & Storage Series | Steel

Save $336.49 Save $336.49
$1,742.61
$1,742.61 - $1,742.61
$1,742.61
$1,406.12
$1,406.12 - $1,406.12
$1,406.12
This Item has a 3 Week Lead Time.
Specifications for Variant SKU: 15730-33 Cox Reels
Series: HD Pivoting Hose Guide Series
Material(s): Steel
Compatible with the following Series: 1185 Series  |   1185-BUXX Series  |   Storage Series

Coxreels Pivoting Hose Guide - HD

Heavy-duty pivoting hose guide for 1175 and 1185 Series motorized reels.

What are the main product features?
  • Powder coated steel arm, 5 locking positions, 1" pivot shaft
  • Sealed precision bearings, chrome-plated billet aluminum rollers
  • Motor options E and ED; sized by drum width

Which part numbers are available?

Order the part number whose drum width matches your reel's drum width.

Part Number Return Drum Width Fits
15728-7.5 Bottom 7.5" 1175
15728-11.5 Bottom 11.5" 1175, 1185, 1185-BUXX, Storage
15728-13.5 Bottom 13.5" 1175
15728-15.5 Bottom 15.5" 1175, 1185, 1185-BUXX
15728-20 Bottom 20" 1175, 1185, 1185-BUXX, Storage
15728-25 Bottom 25" 1185, 1185-BUXX
15728-33 Bottom 33" 1185, 1185-BUXX, Storage
15729-7.5 Top 7.5" 1175
15729-11.5 Top 11.5" 1175, Storage
15729-13.5 Top 13.5" 1175
15729-15.5 Top 15.5" 1175
15729-20 Top 20" 1175, Storage
15730-11.5 Top 11.5" 1185, 1185-BUXX
15730-15.5 Top 15.5" 1185, 1185-BUXX
15730-20 Top 20" 1185, 1185-BUXX, Storage
15730-25 Top 25" 1185, 1185-BUXX
15730-33 Top 33" 1185, 1185-BUXX, Storage

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
