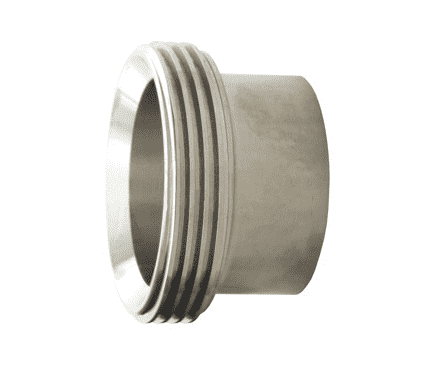

15A-G400 Dixon 304 Stainless Steel Sanitary Long Threaded Bevel Seat Weld Ferrule - 4" Tube OD

15A-G400 Dixon Valve 304 Stainless Steel Sanitary Long Threaded Bevel Seat Weld Ferrule - 4" Tube OD

Save $29.55 Save $29.55
$73.87
$73.87 - $73.87
$73.87
$44.32
$44.32 - $44.32
$44.32

Dixon Sanitary Bevel Seat Ferrules - Long Threaded Bevel Seat Weld Ferrules - 304 Stainless Steel
Specifications for Variant SKU: 15A-G400 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).

Part Number Tube OD Dimensions Weight (Lbs.)
A B
15A-G100 1" 1.375" .870" 0.1700
15A-G150 1-1/2" 1.500" 1.370" 0.2900
15A-G200 2" 1.500" 1.870" 0.4140
15A-G250 2-1/2" 1.750" 2.370" 0.6400
15A-G300 3" 1.750" 2.870" 0.8000
15A-G400 4" 1.750" 3.834" 1.4000
