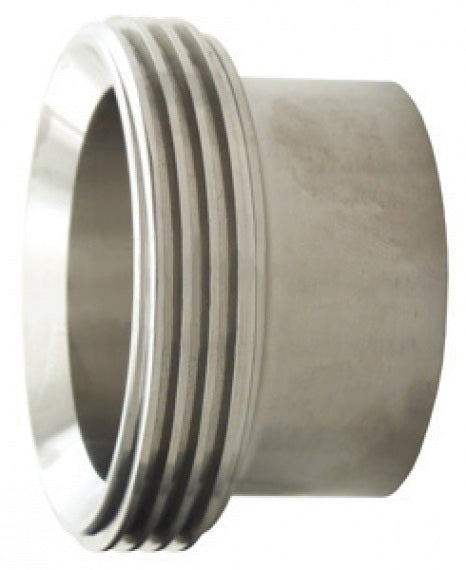

15A-R300 Dixon Valve Long Threaded Bevel Seat Weld Ferrule - 3" Tube OD - 316L Stainless Steel

15A-R300 Dixon Valve Long Threaded Bevel Seat Weld Ferrule - 3" Tube OD - 316L Stainless Steel

Save $25.28 Save $25.28
$63.20
$63.20 - $63.20
$63.20
$37.92
$37.92 - $37.92
$37.92

Dixon Sanitary Fittings Sanitary Long Threaded Bevel Seat Weld Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 15A-R300 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Material:
  • 316L Stainless Steel
Part Number Tube OD Dimensions
A B C D
15A-R100 1" 1.46" 1.38" 0.87" 1.00"
15A-R150 1-1/2" 1.98" 1.50" 1.37" 1.50"
15A-R200 2" 2.53" 1.50" 1.87" 2.00"
15A-R250 2-1/2" 3.06" 1.75" 2.37" 2.50"
15A-R300 3" 3.58" 1.75" 2.87" 3.00"
15A-R400 4" 4.70" 1.75" 3.83" 4.00"
