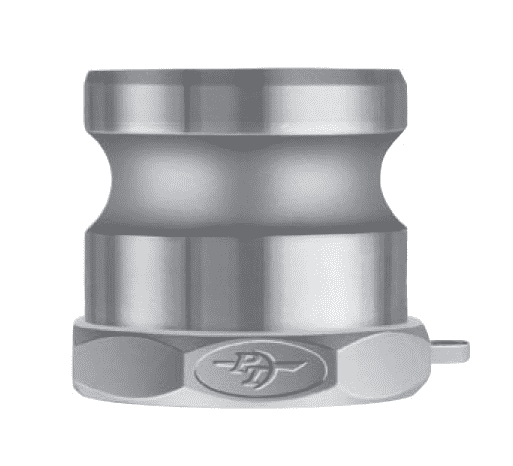

62341500 (15AS) by PT-Coupling | 1-1/2" Adapter x 1-1/2" Female NPSH | Brass | Buna Fuel Resistant Seal

62341500 (15AS) by PT-Coupling | 1-1/2" Adapter x 1-1/2" Female NPSH | Brass | Buna Fuel Resistant Seal

Save $6.67 Save $6.67
$60.03
$60.03 - $60.03
$60.03
$53.36
$53.36 - $53.36
$53.36
Specifications for Variant SKU: 62341500 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 1-1/2in Male Cam & Groove, 1-1/2in Female NPSH
Material(s): Brass
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Straight Threads - Part AS - Adapter x Female Straight Pipe (NPSH) Thread - Brass
Features & Applications:
  • Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads.
  • Comes standard with a Buna Fuel Resistant straight thread gasket.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Adapter
Size		 Female NPSH
Thread		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
15AS 62341500 1-1/2" 1-1/2" 2.29" 1.35" 2.44" 0.33" 250 PSI
20AS 62342000 2" 2" 2.54" 1.72" 2.92" 0.31" 250 PSI
25AS 62342500 2-1/2" 2-1/2" 2.75" 2.14" 3.49" 0.27" 200 PSI
25X20AS 62342520 2-1/2" 2" - - - - 200 PSI
25X30AS 62342530 2-1/2" 3" 2.75" 2.14" 3.49" 0.27" 200 PSI
30AS 62343000 3" 3" 2.84" 2.80" 4.22" 0.44" 200 PSI
40AS 62344000 4" 4" 3.16" 3.78" 5.41" 0.39" 150 PSI
50AS 62345000 5" 5" 3.22" 4.79" 6.49" 0.35" 75 PSI
60AS 62346000 6" 6" 3.35" 5.90" 7.70" 0.60" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
