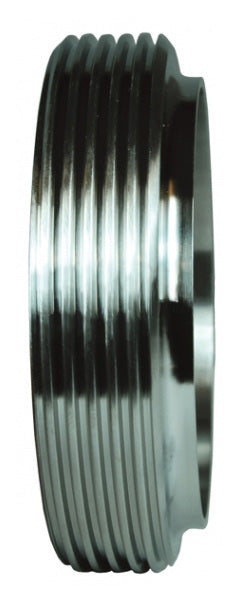

15TRFJP-G300 Dixon Valve John Perry Threaded Short Weld Ferrule - 3" Tube OD - 304 Stainless Steel

15TRFJP-G300 Dixon Valve John Perry Threaded Short Weld Ferrule - 3" Tube OD - 304 Stainless Steel

Save $11.91 Save $11.91
$29.78
$29.78 - $29.78
$29.78
$17.87
$17.87 - $17.87
$17.87

Dixon Sanitary Fittings John Perry Threaded Short Weld Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 15TRFJP-G300 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • 3A sanitary finish ID and OD
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C D
15TRFJP-G100 15TRFJP-R100 1" 0.69" 1.46" 0.87" 1.00"
15TRFJP-G150 15TRFJP-R150 1-1/2" 0.72" 1.98" 1.37" 1.50"
15TRFJP-G200 15TRFJP-R200 2" 0.72" 2.53" 1.87" 2.00"
15TRFJP-G250 15TRFJP-R250 2-1/2" 0.84" 3.06" 2.37" 2.50"
15TRFJP-G300 15TRFJP-R300 3" 0.94" 3.58" 2.87" 3.00"
15TRFJP-G400 15TRFJP-R400 4" 1.22" 4.70" 3.83" 4.00"
