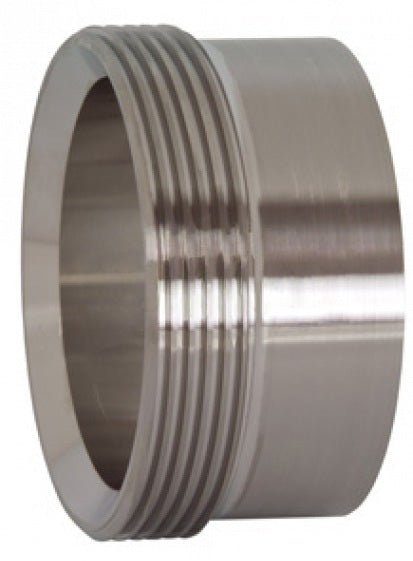

15W-R250 Dixon Valve Heavy Wall Tank Threaded Bevel Seat Ferrule - 2-1/2" Tube OD - 316L Stainless Steel

15W-R250 Dixon Valve Heavy Wall Tank Threaded Bevel Seat Ferrule - 2-1/2" Tube OD - 316L Stainless Steel

Save $26.01 Save $26.01
$65.02
$65.02 - $65.02
$65.02
$39.01
$39.01 - $39.01
$39.01

Dixon Sanitary Fittings Heavy Wall Tank Threaded Bevel Seat Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 15W-R250 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C D E
15W-G100 15W-R100 1" 1.50" 1.16" 0.87" 1.27" 1.46"
15W-G150 15W-R150 1-1/2" 1.63" 1.68" 1.37" 1.70" 1.98"
15W-G200 15W-R200 2" 1.75" 2.19" 1.87" 2.23" 2.53"
15W-G250 15W-R250 2-1/2" 1.75" 2.71" 2.37" 2.74" 3.06"
15W-G300 15W-R300 3" 1.81" 3.22" 2.87" 3.31" 3.58"
15W-G400 15W-R400 4" 2.13" 4.26" 3.83" 4.25" 4.70"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
