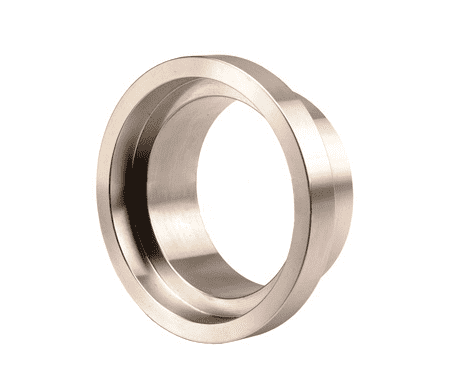

15WI-R300 Dixon 316L Stainless Steel Sanitary Female I-Line Short Weld Ferrule - 3" Tube OD

15WI-R300 Dixon Valve 316L Stainless Steel Sanitary Female I-Line Short Weld Ferrule - 3" Tube OD

Save $40.56 Save $40.56
$101.40
$101.40 - $101.40
$101.40
$60.84
$60.84 - $60.84
$60.84

Dixon Sanitary I-Line Ferrules - Female I-line Short Weld Ferrules - 316L Stainless Steel
Specifications for Variant SKU: 15WI-R300 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight
(Lbs.)
A
15WI-R100 1" .785" 0.2750
15WI-R150 1-1/2" .950" 0.1700
15WI-R200 2" 1.040" 0.4100
15WI-R250 2-1/2" 1.160" 0.6350
15WI-R300 3" 1.220" 0.8300
15WI-R400 4" 1.350" 1.1400
15WI-R600 6" 1.125" 2.8800
15WI-R800 8" 1.125" 5.0000
