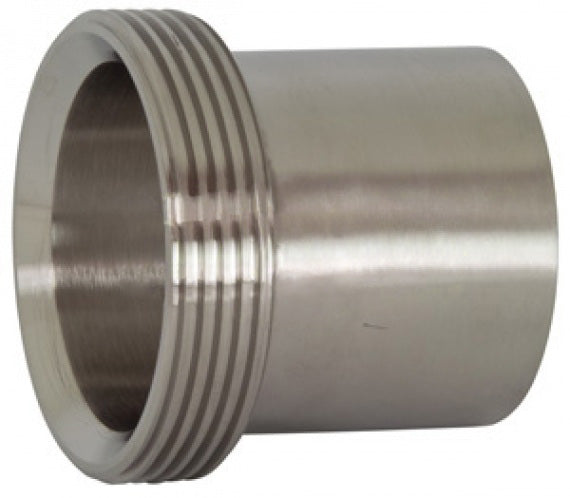

15WL-G300 Dixon Valve Light Wall Tank Threaded Bevel Seat Ferrule - 3" Tube OD - 304 Stainless Steel

15WL-G300 Dixon Valve Light Wall Tank Threaded Bevel Seat Ferrule - 3" Tube OD - 304 Stainless Steel

Save $37.44 Save $37.44
$93.60
$93.60 - $93.60
$93.60
$56.16
$56.16 - $56.16
$56.16

Dixon Sanitary Fittings Light Wall Tank Threaded Bevel Seat Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 15WL-G300 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C D E
15WL-G100 15WL-R100 1" 2.00" 1.00" 0.87" 1.18" 1.46"
15WL-G150 15WL-R150 1-1/2" 2.25" 1.50" 1.37" 1.72" 1.98"
15WL-G200 - 2" 2.50" 2.00" 1.87" 2.23" 2.53"
15WL-G250 15WL-R250 2-1/2" 2.75" 2.50" 2.37" 2.74" 3.06"
15WL-G300 15WL-R300 3" 3.00" 3.00" 2.87" 3.31" 3.58"
15WL-G400 - 4" 4.00" 4.00" 3.83" 4.25" 4.70"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
