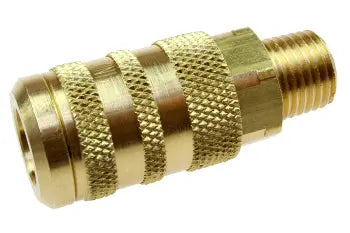

15X4M by Coilhose | CoilFlow™ Six Ball Industrial Interchange Coupler | Manual | 1/4" Body Size | 1/4" Male NPT Thread | Straight | Brass (Type 15)

15X4M by Coilhose | CoilFlow™ Six Ball Industrial Interchange Coupler | Manual | 1/4" Body Size | 1/4" Male NPT Thread | Straight | Brass (Type 15)

Save $6.41 Save $6.41
$16.02
$16.02 - $16.02
$16.02
$9.61
$9.61 - $9.61
$9.61
Coilhose Pneumatics - Couplers & Connectors - Coilflow™ Six Ball Couplers - Manual - Industrial Interchange 1/4" Body Size (Type 15)
Specifications for Variant SKU: 15X4M Coilhose
Brand: Coilflow
Shape (Orientation): Straight
Material(s): Brass
Overview:
  • Coilflow™ Six Ball Interchange Couplers feature six stainless steel locking balls to provide a more balanced and secure connection. The locking ball diameter is sized to properly fit the connectors' form to allow greater surface contact. This makes the connector more durable, even in high-vibration conditions. These couplers are compatible with other manufacturers' couplers within the same interchange series.
Features:
  • Six Stainless Steel locking balls provide a more secure and balanced connection, extending the life of the connector.
  • Knurled body enhances grip.
  • Integral drag guard prevents accidental disconnection.
  • All couplers have stainless steel springs.
  • Made in USA
Body Size: 1/4" Type: Type 15
Interchange: Industrial Style: Manual
Locking Device: 6 Stainless Balls Internal Valve: Zinc-Plated Steel
Body Material: Brass Sleeve Material: Brass
Maximum Input Pressure: 300 PSI Temperature Range: -40°F to 250°F
Seals: Nitrile (Buna N)

Thread & Barb Size
Part No
Female		 Part No
Male		 Part No
Hose Barb		 Part No
Lock-On Hose Barb		 Part No
Reusable PolyurethaneHose Barb
1/8" 15X2F 15X2M - - -
1/4" 15X4F 15X4M 15X4H 15X4L 15X4PR*
5/16" - - 15X5H - -
3/8" 15X6F 15X6M 15X6H 15X6L -
* Installs directly onto 1/4" Polyurethane Hose.
