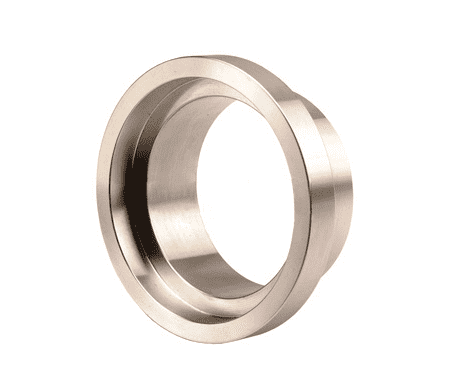

15WI-R400 Dixon 316L Stainless Steel Sanitary Female I-Line Short Weld Ferrule - 4" Tube OD

15WI-R400 Dixon Valve 316L Stainless Steel Sanitary Female I-Line Short Weld Ferrule - 4" Tube OD

Save $63.04 Save $63.04
$157.60
$157.60 - $157.60
$157.60
$94.56
$94.56 - $94.56
$94.56

Dixon Sanitary I-Line Ferrules - Female I-line Short Weld Ferrules - 316L Stainless Steel
Specifications for Variant SKU: 15WI-R400 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight
(Lbs.)
A
15WI-R100 1" .785" 0.2750
15WI-R150 1-1/2" .950" 0.1700
15WI-R200 2" 1.040" 0.4100
15WI-R250 2-1/2" 1.160" 0.6350
15WI-R300 3" 1.220" 0.8300
15WI-R400 4" 1.350" 1.1400
15WI-R600 6" 1.125" 2.8800
15WI-R800 8" 1.125" 5.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
