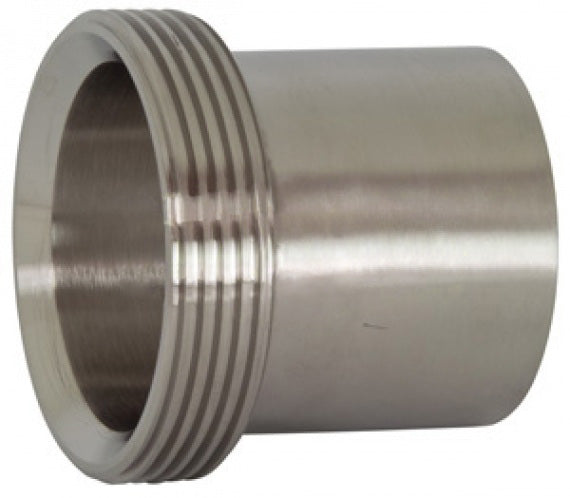

15WL-G150 Dixon Valve Light Wall Tank Threaded Bevel Seat Ferrule - 1-1/2" Tube OD - 304 Stainless Steel

15WL-G150 Dixon Valve Light Wall Tank Threaded Bevel Seat Ferrule - 1-1/2" Tube OD - 304 Stainless Steel

$29.87 - $29.87
$29.87
$30.17
$30.17 - $30.17
$30.17

Dixon Sanitary Fittings Light Wall Tank Threaded Bevel Seat Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 15WL-G150 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C D E
15WL-G100 15WL-R100 1" 2.00" 1.00" 0.87" 1.18" 1.46"
15WL-G150 15WL-R150 1-1/2" 2.25" 1.50" 1.37" 1.72" 1.98"
15WL-G200 - 2" 2.50" 2.00" 1.87" 2.23" 2.53"
15WL-G250 15WL-R250 2-1/2" 2.75" 2.50" 2.37" 2.74" 3.06"
15WL-G300 15WL-R300 3" 3.00" 3.00" 2.87" 3.31" 3.58"
15WL-G400 - 4" 4.00" 4.00" 3.83" 4.25" 4.70"
