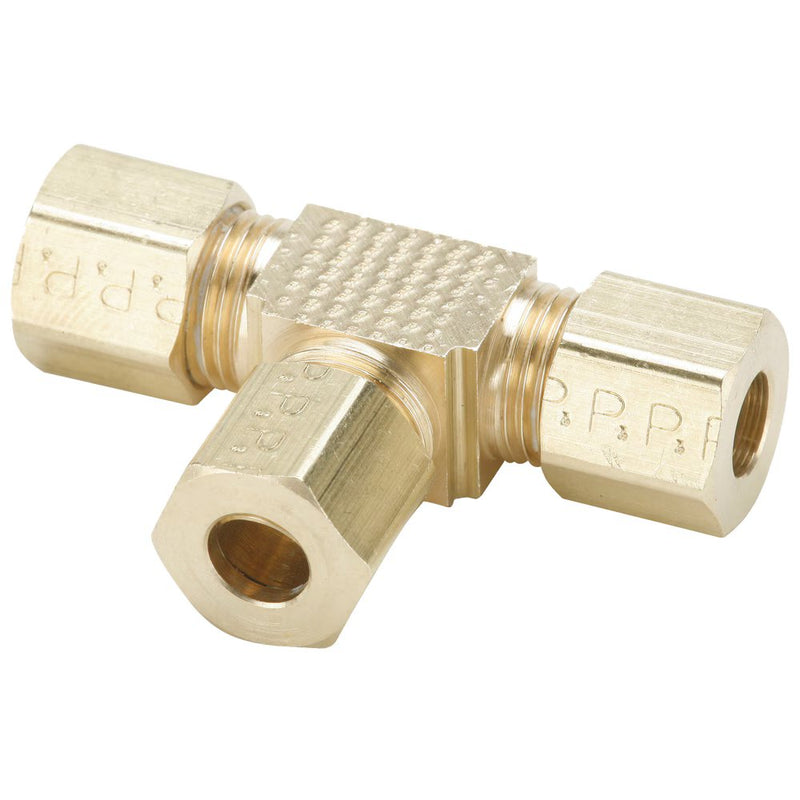

164C-10 by Parker | Compression Fitting | Union | 5/8" Tube Size x 13/16" Thread | 2.68" Length | Tee | Brass | Pack of 5

Save $122.59

$306.48

$306.48 - $306.48

$306.48

$183.89

$183.89 - $183.89

$183.89

by Parker Hannifin
Compression Fittings:Union Tee 164C-264C

Package Quantity: 5 Units

Specifications for Variant SKU: 164C-10 Parker \| 5 \|
Series:	164C Series
Shape (Orientation):	Tee
Material(s):	Brass
Special Properties:	UL Listed


Product Features:	Meets functional requirements of SAE J-512 UL Listed for flammable liquid Brass or acetal sleeve available No tube preparation Forged and extruded shapes
Markets:	Industrial Packaging Pneumatic Printing
Applications:	Air lines Lubrication Lines Cooling lines Industry Machinery Compressors Fluid transfer
Specification:
Pressure Range:	See Chart Below
Temperature Range:	-65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:	Copper Aluminum Thermoplastic tubing


Part Number	Tube Size	Straight Thread	L	M	Flow Diameter (D)
164C-2	1/8"	5/16"-24	.82"	.61"	.094"
264C-3	3/16"	3/8"-24	.84"	.60"	.125"
164C-4	1/4"	7/16"-24	.86"	.63"	.188"
164C-5	5/16"	1/2"-24	.98"	.71"	.250"
164C-6	3/8"	9/16"-24	1.03"	.74"	.312"
164C-8	1/2"	11/16"-20	1.34"	.93"	.406"
164C-10	5/8"	13/16"-18	1.54"	1.08"	.500"
164C-12	3/4"	1"-18	1.65"	1.17"	.563"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
