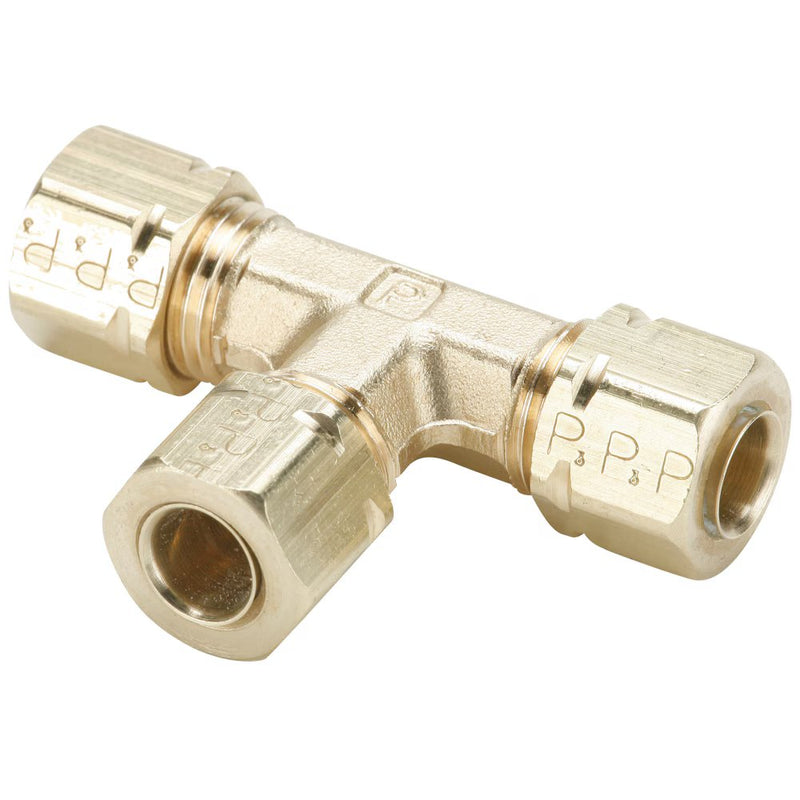

164CA-10 by Parker | Compress-Align® Fittings | Union | 5/8" Tube Size x 13/16" Thread | 2.64" Length | Tee | Brass | Pack of 10

164CA-10 by Parker | Compress-Align® Fittings | Union | 5/8" Tube Size x 13/16" Thread | 2.64" Length | Tee | Brass | Pack of 10

Save $43.11 Save $43.11
$474.19
$474.19 - $474.19
$474.19
$431.08
$431.08 - $431.08
$431.08

by Parker Hannifin
Compress-Align® Fittings:Union Tee 164CA-264CA

Package Quantity: 10 Units

Specifications for Variant SKU: 164CA-10 Parker | 10 |
Brand: Compress-Align
Series: 164CA Series
Shape (Orientation): Tee
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size Straight Thread L M Flow Diameter (D)
164CA-2 1/8" 5/16"-24 .84" .61" .093"
264CA-3 3/16" 3/8"-24 .83" .60" .125"
164CA-4 1/4" 7/16"-24 .84" .63" .188"
164CA-5 5/16" 1/2"-24 .95" .71" .250"
164CA-6 3/8" 9/16"-24 .96" .61" .093"
164CA-8 1/2" 11/16"-20 1.15" .93" .406"
164CA-10 5/8" 13/16"-18 1.32" 1.08" .500"
164CA-12 3/4" 1.00-18 1.56" 1.17" .562"
