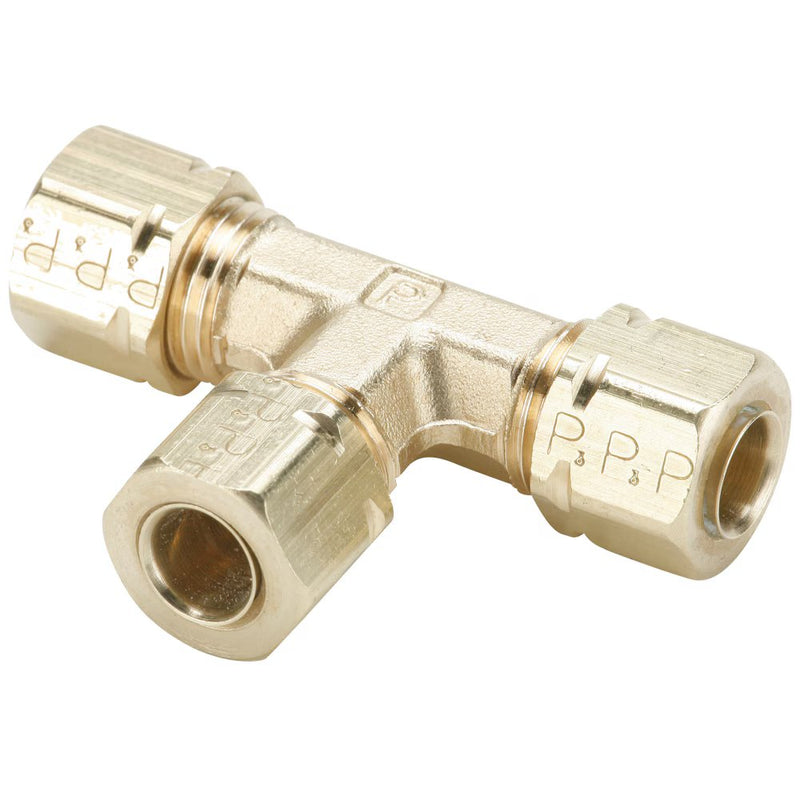

164CA-8-8-6 by Parker | Compress-Align® Fittings | Union | 1/2" Tube Size 1 x 1/2" Tube Size 2 x 3/8" Tube Size 3 | 1.94" Length | Tee | Brass | Pack of 10

164CA-8-8-6 by Parker | Compress-Align® Fittings | Union | 1/2" Tube Size 1 x 1/2" Tube Size 2 x 3/8" Tube Size 3 | 1.94" Length | Tee | Brass | Pack of 10

Save $226.87 Save $226.87
$567.17
$567.17 - $567.17
$567.17
$340.30
$340.30 - $340.30
$340.30

by Parker Hannifin
Compress-Align® Fittings:Union Tee 164CA combination sizes

Package Quantity: 10 Units

Specifications for Variant SKU: 164CA-8-8-6 Parker | 10 |
Brand: Compress-Align
Series: 164CA Series
Shape (Orientation): Tee
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size 1 Tube Size 2 Tube Size 3 L1 L2 L3 M1 M2 M3 Flow Diameter (D)
164CA-6-4-4 3/8" 1/4" 1/4" .97" .96" .96" .75" .72" .72" .188
164CA-6-6-4 3/8" 3/8" 1/4" .97" .97" .96" .75" .75" .72" .188
164CA-8-8-6 1/2" 1/2" 3/8" 1.17" 1.17" 1.10" .94" .94" ..88" .312
