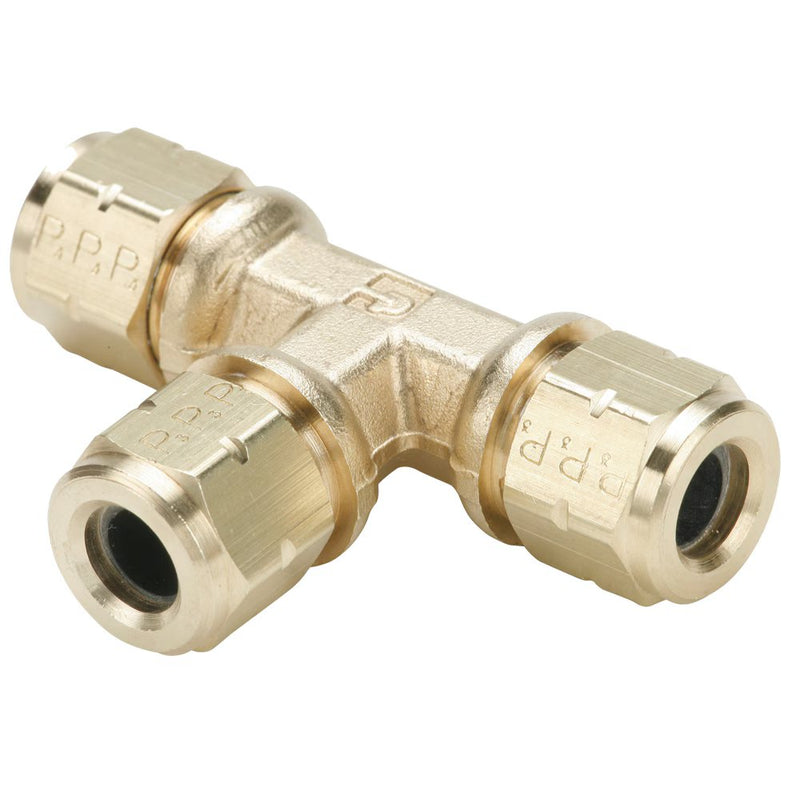

164VL-5 by Parker | Vibra-Lok Fittings | Union | 5/16" Tube Size | 15/32" Body Hex | 2.44" Length | Tee | Brass | Pack of 5

Save $133.55

$333.88

$333.88 - $333.88

$333.88

$200.33

$200.33 - $200.33

$200.33

by Parker Hannifin
Vibra-Lok Fittings:Union Tee 164VL

Package Quantity: 5 Units

Specifications for Variant SKU: 164VL-5 Parker \| 5 \|
Brand:	Vibra-Lok
Series:	164VL Series
Shape (Orientation):	Tee
Material(s):	Brass
Special Properties:	Fuel Grade, Vibration Resistance

Specification:
Product Features:	Brass Body Sleeves in Buna N and Fluorocarbon NPTF and SAE J1926 Straight Threads are Standard Excellent Vibration Resistance
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Oil Fuel Coolant Lines on engines
Pressure Range:	Dependent on condition and tube size, refer to pressure chart

Temperature Range:	-15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve -30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:	Copper Aluminum Steel (Bundy) Stainless Steel Glass


Part Number	Tube Size	Body Hex	L	M	Flow Diameter (D)
164VL-3	3/16"	3/8"	.98"	.69"	.160"
164VL-4	1/4"	1/2"	1.06"	.75"	.190"
164VL-5	5/16"	15/32"	1.22"	.88"	.250"
164VL-8	1/2"	13/16"	1.64"	1.16"	.406"
