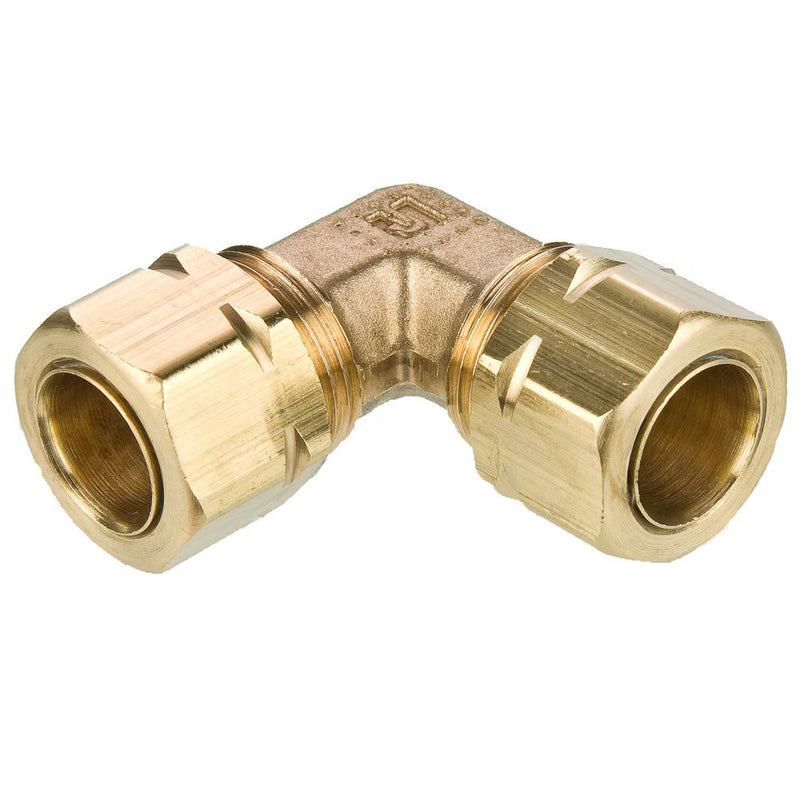

165CA-12 by Parker | Compress-Align® Fittings | Union | 3/4" Tube Size x 1" Thread | 90° Elbow | Brass | Pack of 5

165CA-12 by Parker | Compress-Align® Fittings | Union | 3/4" Tube Size x 1" Thread | 90° Elbow | Brass | Pack of 5

Save $209.06 Save $209.06
$522.65
$522.65 - $522.65
$522.65
$313.59
$313.59 - $313.59
$313.59

by Parker Hannifin
Compress-Align® Fittings:Union Elbow 165CA-265CA

Package Quantity: 5 Units

Specifications for Variant SKU: 165CA-12 Parker | 5 |
Brand: Compress-Align
Series: 165CA Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size Straight Thread L M Flow Diameter (D)
165CA-2 1/8" 5/16"-24 .84" .61" .094"
165CA-3 3/16" 3/8"-24 .84" .61" .125"
165CA-4 1/4" 7/16"-24 .87" .62" .188"
165CA-5 5/16" 1/2"-24 .94" .71" .250"
165CA-6 3/8" 9/16"-24 .96" .74" .312"
165CA-8 1/2" 11/16"-20 1.15" .93" .406"
165CA-10 5/8" 13/16"-18 1.29" 1.05" .500"
165CA-12 3/4" 1"-18 1.56" 1.17" .562"
165CA-16 1" 1-1/4"-18 1.63" 1.19" .877"
