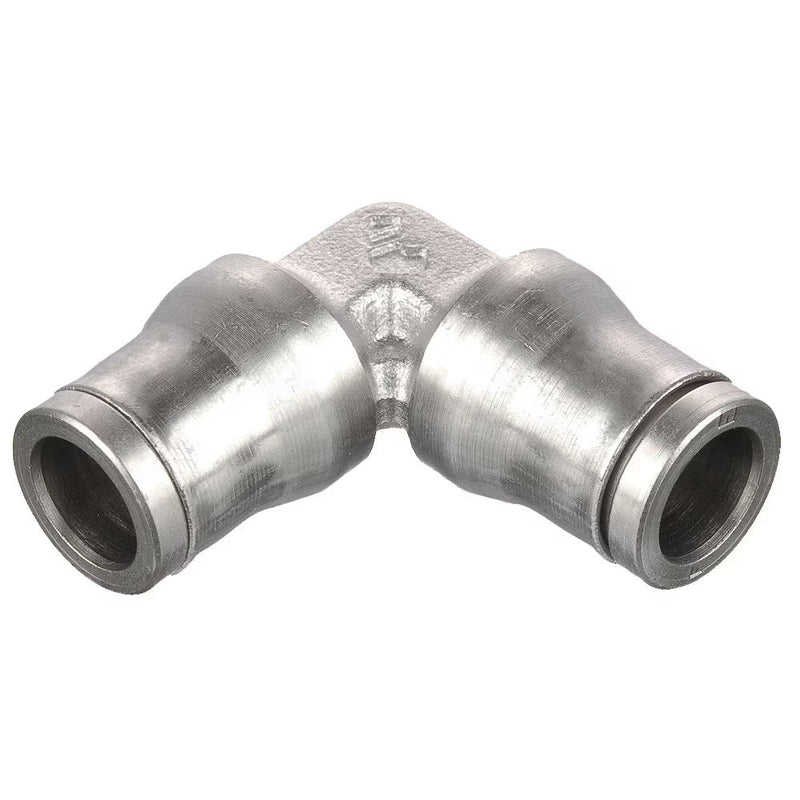

165PLM-12M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Tube to Tube Fittings | 12 mm Tube Size | 40.50 mm Length | 90° Elbow | Electroless Nickel-Plated Brass | Pack of 5

165PLM-12M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Tube to Tube Fittings | 12 mm Tube Size | 40.50 mm Length | 90° Elbow | Electroless Nickel-Plated Brass | Pack of 5

Save $60.91 Save $60.91
$152.28
$152.28 - $152.28
$152.28
$91.37
$91.37 - $91.37
$91.37

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:165PLM Union Elbow Metric Tube

Package Quantity: 5 Units

Specifications for Variant SKU: 165PLM-12M Parker | 5 |
Series: 165PLM Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size L
165PLM-4M 4 mm 23.00 mm
165PLM-6M 6 mm 28.00 mm
165PLM-8M 8 mm 31.00 mm
165PLM-10M 10 mm 37.50 mm
165PLM-12M 12 mm 40.50 mm
165PLM-14M 14 mm 45.00 mm
