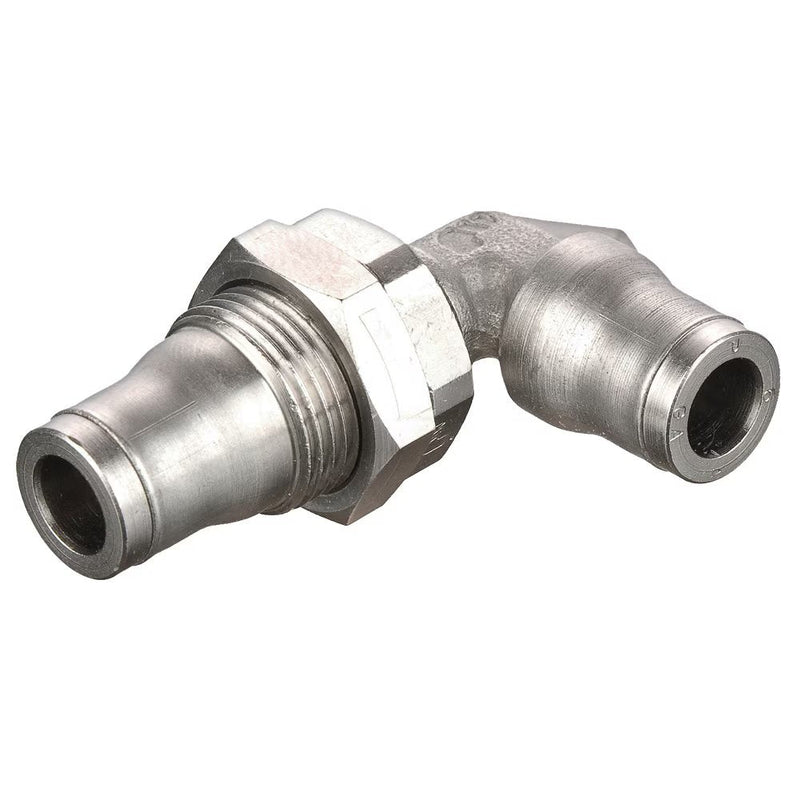

165PLMBH-8M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 8 mm Tube Size | 44.00 mm Length | 19 mm Height | 90° Elbow | Electroless Nickel-Plated Brass | Pack of 10

165PLMBH-8M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 8 mm Tube Size | 44.00 mm Length | 19 mm Height | 90° Elbow | Electroless Nickel-Plated Brass | Pack of 10

Save $30.30 Save $30.30
$333.25
$333.25 - $333.25
$333.25
$302.95
$302.95 - $302.95
$302.95

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:165PLMBH Bulkhead Elbow Metric Tube

Package Quantity: 10 Units

Specifications for Variant SKU: 165PLMBH-8M Parker | 10 |
Series: 165PLMBH Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size F1 F2 H L T
165PLMBH-4M 4 mm 13 mm 14 mm 35.00 mm 18.00 mm 12.50 mm
165PLMBH-6M 6 mm 16 mm 17 mm 40.50 mm 21.50 mm 15.00 mm
165PLMBH-8M 8 mm 18 mm 19 mm 44.00 mm 23.50 mm 17.00 mm
165PLMBH-10M 10 mm 22 mm 27 mm 51.00 mm 29.00 mm 21.00 mm
165PLMBH-12M 12 mm 24 mm 24 mm 55.00 mm 31.00 mm 23.00 mm
165PLMBH-14M 14 mm 27 mm 27 mm 59.00 mm 34.00 mm 25.00 mm
