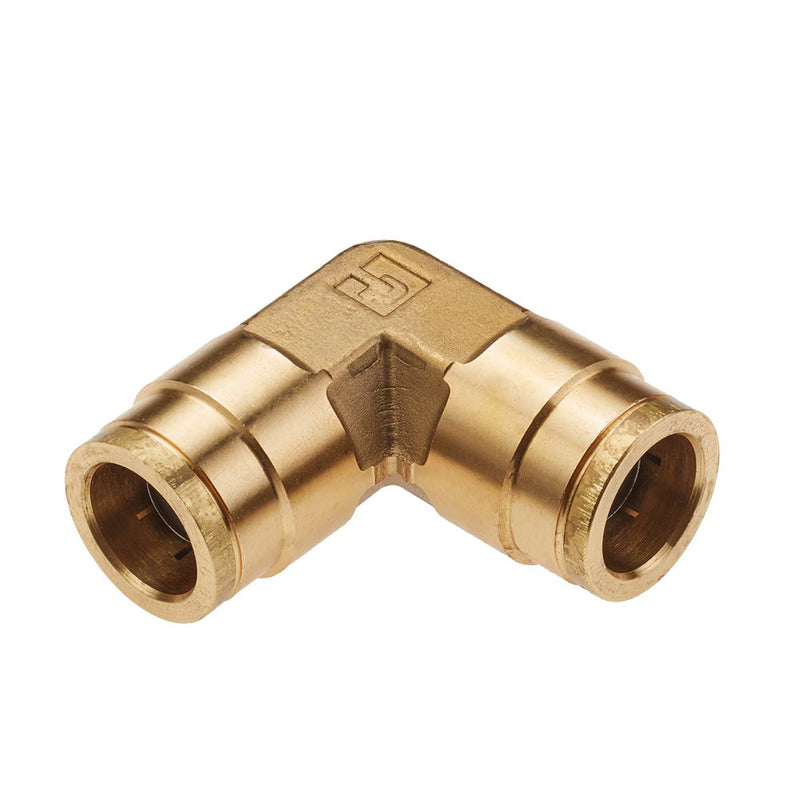

165PTC-4 by Parker | Tube to Tube Fitting | Union | 1/4" Push-to-Connect | .80" Length | 90° Elbow | Brass | Pack of 5

Save $64.85

$162.12

$162.12 - $162.12

$162.12

$97.27

$97.27 - $97.27

$97.27

by Parker Hannifin
PTC Brass Fittings:Union Elbow 165PTC

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 165PTC-4 Parker \| 5 \|
Series:	165PTC Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Specification:
Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	L
165PTC-5/32*	5/32"	.79"
165PTC-3*	3/16"	.77"
165PTC-4	1/4"	.80"
165PTC-6	3/8"	1.20"
165PTC-8	1/2"	1.22"
165PTC-10	5/8"	1.49"

*5/32 and 3/16 with black button
