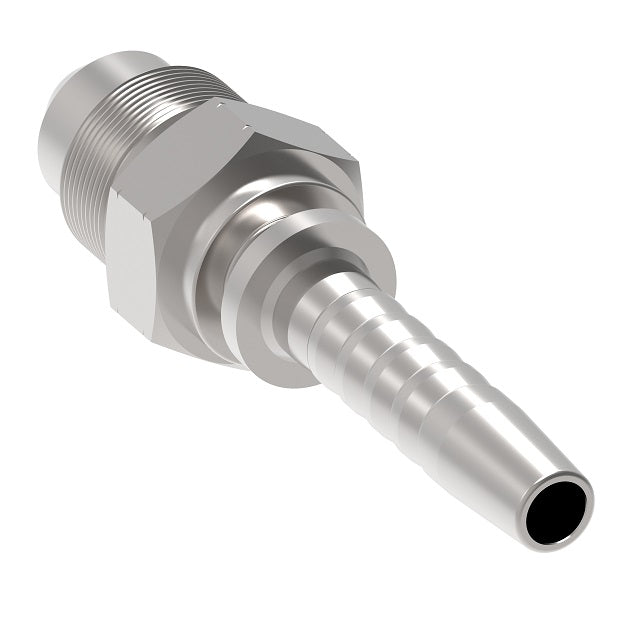

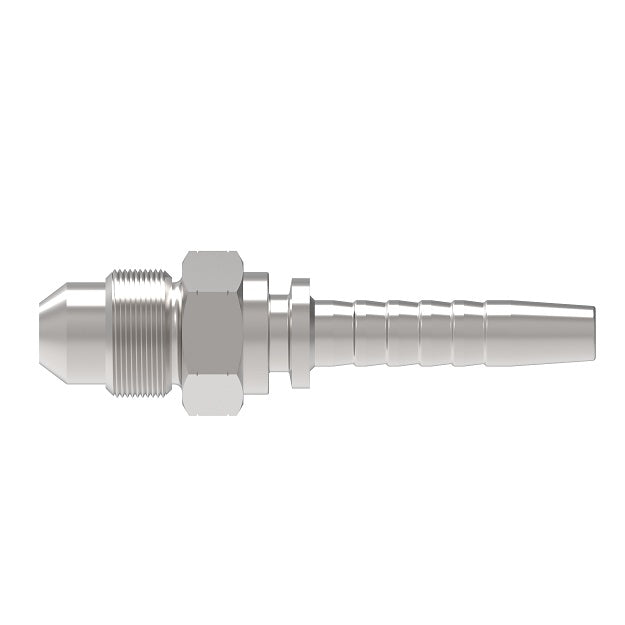

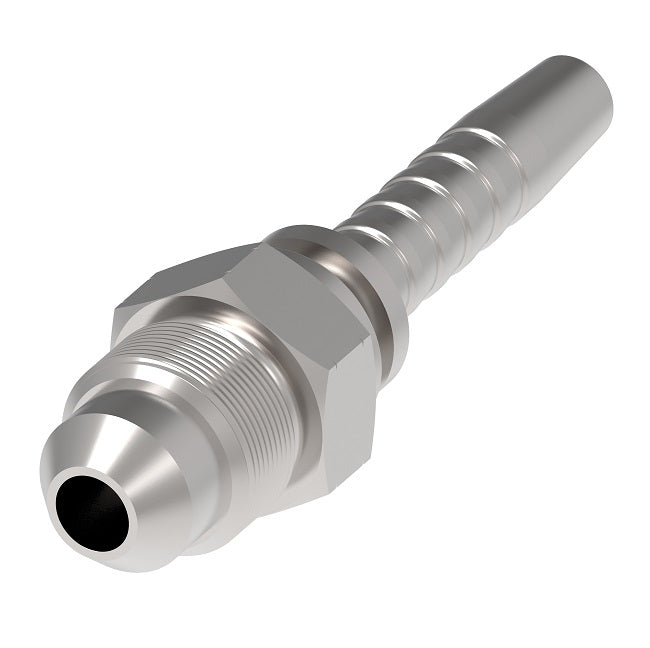

16711-08-08ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -08 Male 37° JIC x -08 Hose Barb | Steel

16711-08-08ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -08 Male 37° JIC x -08 Hose Barb | Steel

Name: 16711-08-08ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -08 Male 37° JIC x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 16711-08-08ZF Danfoss
Price: 17.18 USD
Availability: InStock

$17.18 - $17.18

$17.18

$17.18 - $17.18

$17.18

Winner by Danfoss
Male 37° JIC 2-Piece Hose Crimp Fitting - Male 37° JIC x Hose Barb - Straight

Quantity

Specifications for Variant SKU: 16711-08-08ZF Danfoss
Brand:	Winner
Ends Configuration:	1/2in Male JIC, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC115 Series \| EC215 Series \| EC118 Series

Features:
Non-skive, two-piece crimp Fitting. Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating. Carbon steel material.


Part Number	Terminal End Dash Size	Thread	DN	Hose Size	A	D Cut Off Factor	E&Oslash	Hex 2
16711-06-04ZF	-06	9/16-18	6	-04	2.15"	1.04"	0.16"	17mm
16711-08-06ZF	-08	3/4-16	10	-06	2.42"	1.24"	0.28"	22mm
16711-08-08ZF	-08	3/4-16	12	-08	2.50"	1.26"	0.39"	22mm
16711-10-08ZF	-10	7/8-14	12	-08	2.58"	1.34"	0.39"	24mm
16711-10-10ZF	-10	7/8-14	16	-10	2.72"	1.38"	0.47"	24mm
16711-12-10ZF	-12	11/16-12	16	-10	2.89"	1.56"	0.47"	30mm
16711-16-12ZF	-16	1-5/16-12	20	-12	3.21"	1.69"	0.59"	36mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
