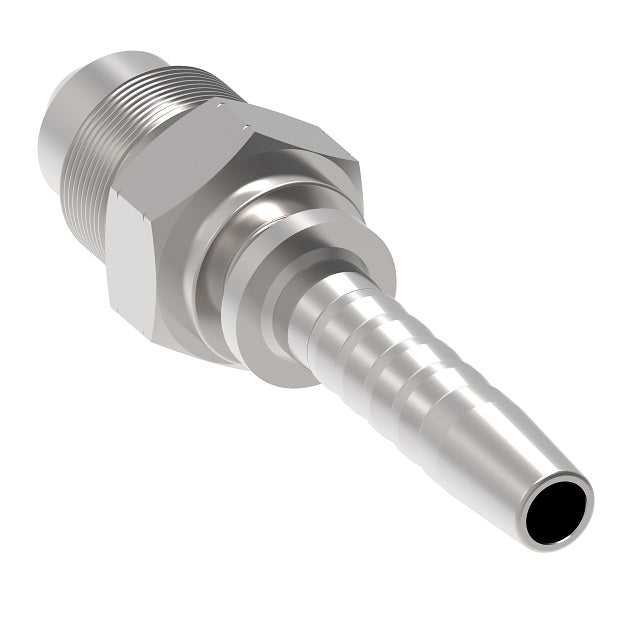

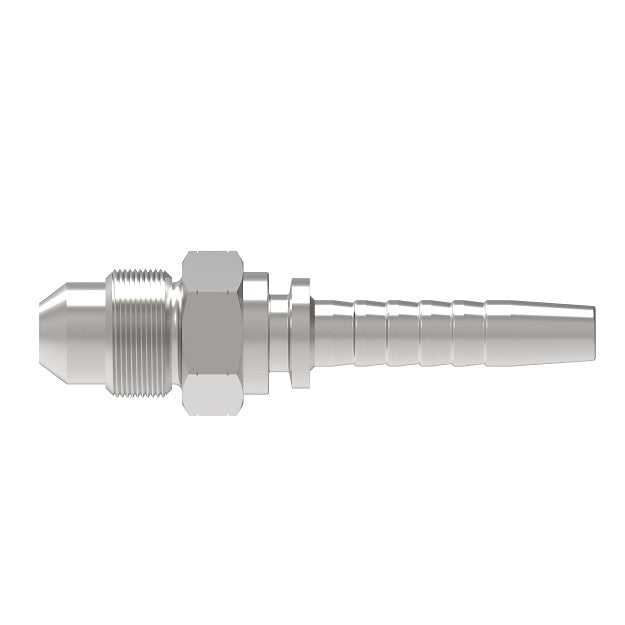

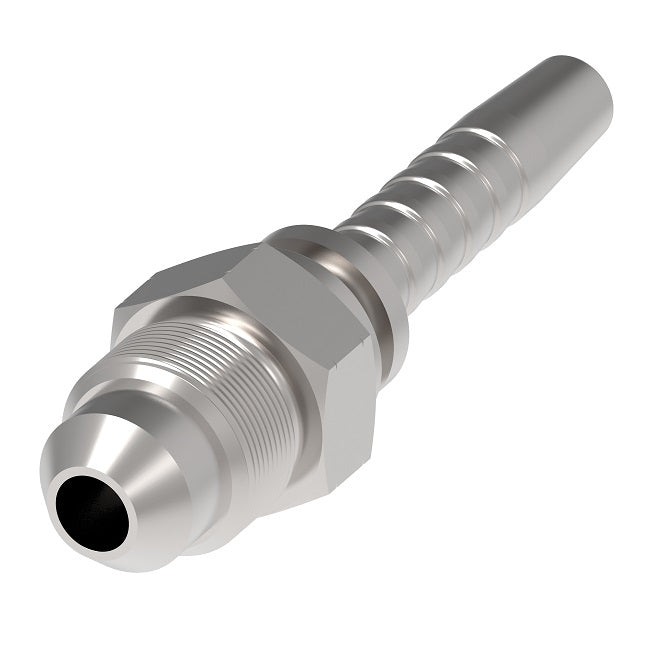

16711-12-10ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -12 Male 37° JIC x -10 Hose Barb | Steel

16711-12-10ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -12 Male 37° JIC x -10 Hose Barb | Steel

Name: 16711-12-10ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -12 Male 37° JIC x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 16711-12-10ZF Danfoss
Price: 28.42 USD
Availability: InStock

$28.42 - $28.42

$28.42

$28.42 - $28.42

$28.42

Winner by Danfoss
Male 37° JIC 2-Piece Hose Crimp Fitting - Male 37° JIC x Hose Barb - Straight

Quantity

Specifications for Variant SKU: 16711-12-10ZF Danfoss
Brand:	Winner
Ends Configuration:	3/4in Male JIC, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC115 Series \| EC215 Series \| EC118 Series

Features:
Non-skive, two-piece crimp Fitting. Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating. Carbon steel material.


Part Number	Terminal End Dash Size	Thread	DN	Hose Size	A	D Cut Off Factor	E&Oslash	Hex 2
16711-06-04ZF	-06	9/16-18	6	-04	2.15"	1.04"	0.16"	17mm
16711-08-06ZF	-08	3/4-16	10	-06	2.42"	1.24"	0.28"	22mm
16711-08-08ZF	-08	3/4-16	12	-08	2.50"	1.26"	0.39"	22mm
16711-10-08ZF	-10	7/8-14	12	-08	2.58"	1.34"	0.39"	24mm
16711-10-10ZF	-10	7/8-14	16	-10	2.72"	1.38"	0.47"	24mm
16711-12-10ZF	-12	11/16-12	16	-10	2.89"	1.56"	0.47"	30mm
16711-16-12ZF	-16	1-5/16-12	20	-12	3.21"	1.69"	0.59"	36mm
