16902 by Coxreels | 4-Way Top Roller Bracket for Hand Crank & Motorized Hose Reels | Fits 1600 Series | Steel

16902 by Coxreels | 4-Way Top Roller Bracket for Hand Crank & Motorized Hose Reels | Fits 1600 Series | Steel

Save $52.68 Save $52.68
$230.30
$230.30 - $230.30
$230.30
$177.62
$177.62 - $177.62
$177.62
This Item has a 3 Week Lead Time.
Specifications for Variant SKU: 16902 Cox Reels
Series: 4-Way Top Roller Bracket Series
Material(s): Steel
Compatible with the following Series: 1600 Series

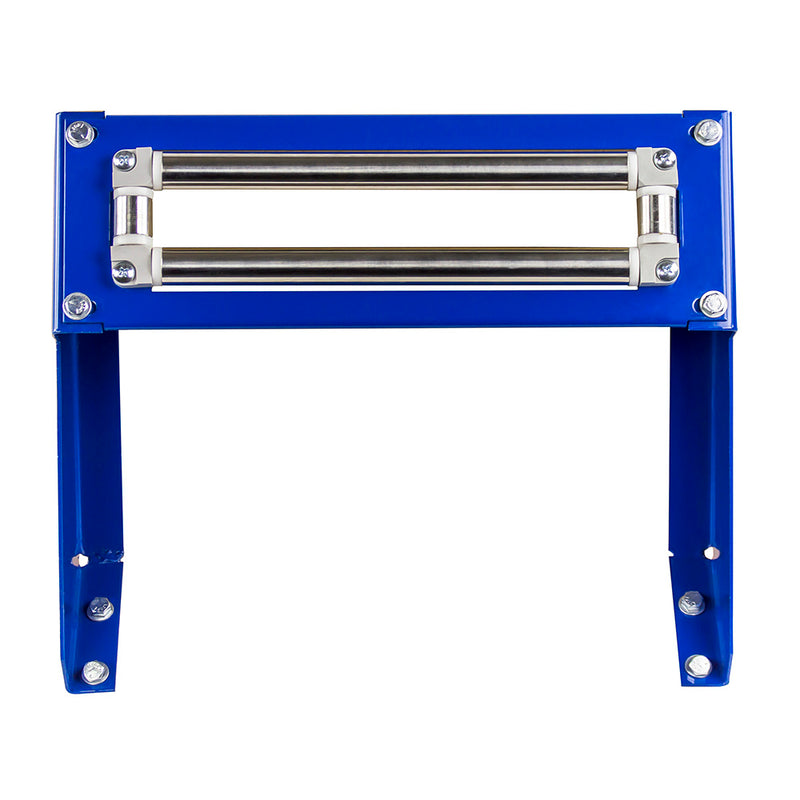

Coxreels 4-Way Top Roller Bracket

Top-rewind 4-way roller bracket for hand crank and motorized hose reels.

What are the main product features?
  • 4-way enclosed, pinch-proof 1" stainless steel rollers
  • Powder coated steel brackets
  • Sized by drum width (part-number suffix) and disc size

Which part numbers are available?

Order the part number whose drum width matches your reel's drum width.

-SS and -SP part numbers are the versions for the matching -SS / -SP stainless reel models.

Part Number Drum Width Version Fits
9073-8 8" Standard 100, 100W
9073-12.5 12.5" Standard 100
9073-18 18" Standard 100
9075-8 8" Standard 100 Pure Flow, 100, 100W, 112Y
9075-12.5 12.5" Standard 100, 112Y
15353-6 6" Standard 1125 Pure Flow, 1125, 1125WCL, HP1125
15353-6-SP 6" -SP 1125-SS
15353-6-SS 6" -SS 1125-SS
15353-8 8" Standard 1125 Pure Flow, 1125PCL, 1275, 1275HP, 1275W
15353-9.5 9.5" Standard 1125
15353-12 12" Standard 1125 Pure Flow, 1125, 1125WCL, 1275, 1275HP, 1275W, HP1125, Storage
15353-12-SP 12" -SP 1125-SS
15353-12-SS 12" -SS 1125-SS
15353-15.5 15.5" Standard 1125
15353-18 18" Standard 1125, 1275, 1275W, HP1125, Storage
15353-20 20" Standard 1275
15353-22 22" Standard 1125
15353-24 24" Standard 1125, 1275, HP1125
15353-24-SP 24" -SP 1125-SS
15353-24-SS 24" -SS 1125-SS
15353-28 28" Standard 1125, HP1125, Storage
15355-6 6" Standard 1125 Pure Flow, 1125
15355-8 8" Standard 1125 Pure Flow, 1275, 1275HP, 1275W
15355-9.5 9.5" Standard 1125
15355-12 12" Standard 1125 Pure Flow, 1125, 1275, 1275HP, 1275W
15355-15.5 15.5" Standard 1125
15355-18 18" Standard 1125, 1275, 1275W
15355-24 24" Standard 1125, 1275, 1275W
15355-28 28" Standard 1125
15357-7.5 7.5" Standard 1175
15357-11.5 11.5" Standard 1175, Storage
15357-11.5-SP 11.5" -SP 1175-SS
15357-11.5-SS 11.5" -SS 1175-SS
15357-13.5 13.5" Standard 1175, 1275
15357-15.5 15.5" Standard 1175
15357-20 20" Standard 1175, 1275, Storage
15357-20-SP 20" -SP 1175-SS
15357-20-SS 20" -SS 1175-SS
15368-1-9.5 9.5" Standard 1195, 1195-BUXX
15368-1-13.5 13.5" Standard 1195, 1195-BUXX
15368-1-17.5 17.5" Standard 1195, 1195-BUXX
15368-1-20 20" Standard 1195, 1195-BUXX
15368-17.5 17.5" Standard 1195
15368-24 24" Standard 1195, 1195-BUXX
15368-32 32" Standard 1195, 1195-BUXX
15369-1-20 20" Standard 1185, 1185-BUXX, Storage
15369-1-25 25" Standard 1185, 1185-BUXX
15369-1-33 33" Standard 1185, 1185-BUXX, Storage
15369-11.5 11.5" Standard 1185, 1185-BUXX
15369-15.5 15.5" Standard 1185, 1185-BUXX
15369-20 20" Standard 1185, 1185-BUXX
15369-33 33" Standard 1185, 1185-BUXX
16901 — Standard 1600 (20" disc)
16902 — Standard 1600 (24" disc)
16903 — Standard 1600 (28" disc)

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
