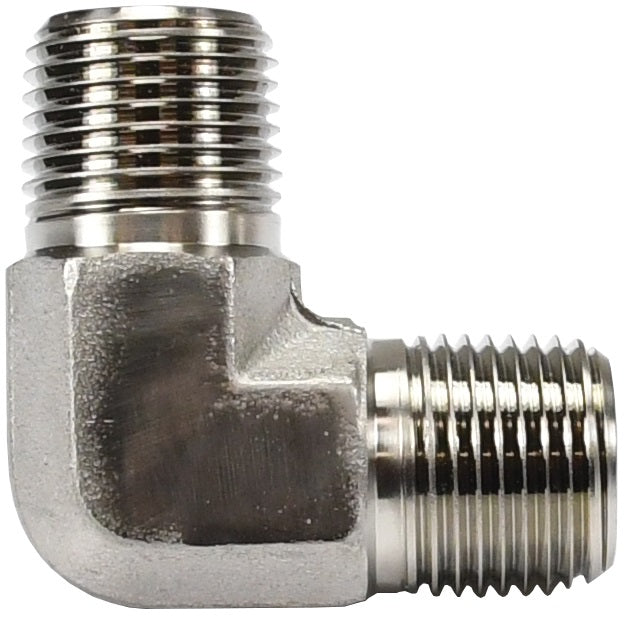

1690404SS by Dixon Valve | Male Pipe Nipple | 90° Elbow | 1/4" Male NPT x 1/4" Male NPT | 316 Stainless Steel

Name: 1690404SS by Dixon Valve | Male Pipe Nipple | 90° Elbow | 1/4" Male NPT x 1/4" Male NPT | 316 Stainless Steel
Brand: Dixon
SKU: 1690404SS Dixon
Price: 10.43 USD
Availability: InStock

$10.22 - $10.22

$10.22

$10.43

$10.43 - $10.43

$10.43

Dixon Valve
Pipe Fitting | Male Pipe Nipple | 90° Elbow | Male NPT x Male NPT

Quantity

Specifications for Variant SKU: 1690404SS Dixon
Series:	169 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Male NPT, 1/4in Male NPT, Some Ends Match
Material(s):	316 Stainless Steel

Features:
Male National Pipe Taper (NPT) threads on both ends for connecting two female pipes. Excellent corrosion resistance. Pipe sealant recommended. 90-degree elbow for changing flow direction.

Forged Brass Part Number	Previous Part Number	316 Stainless Steel Part Number (NPT THREADS)	Male NPTF x Male NPTF
1690202C	169-0202	1690202SS	1/8" x 1/8"
1690404C	169-0404	1690404SS	1/4" x 1/4"
1690606C	169-0606	1690606SS	3/8" x 3/8"
1690808C	169-0808	1690808SS	1/2" x 1/2"
-	-	1691212SS	3/4" x 3/4"
-	-	1691616SS	1" x 1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
