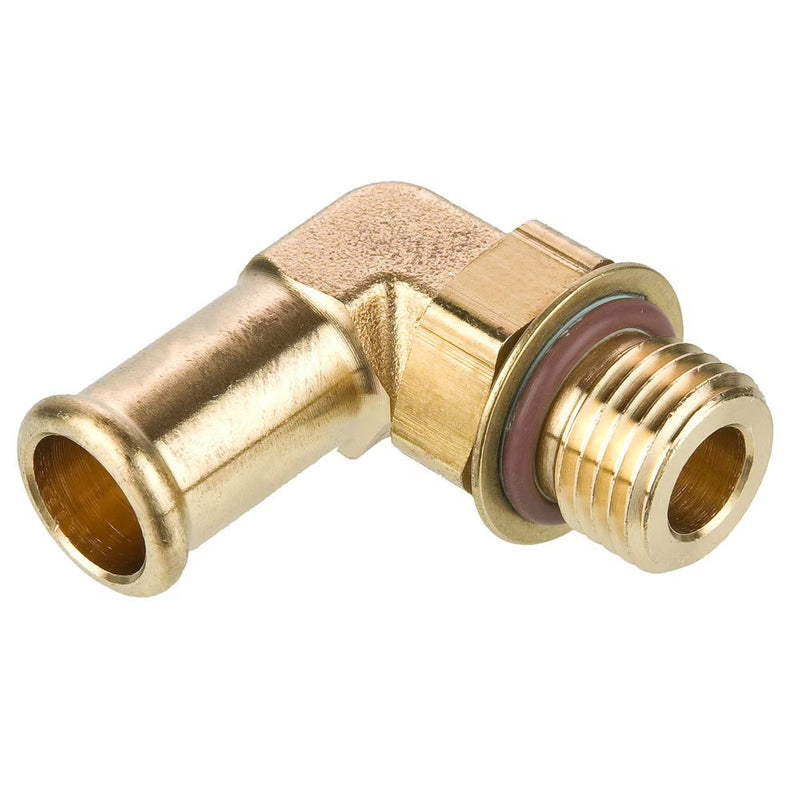

169HB-16-MI33 by Parker | Hose Barb Fittings | 1" Hose Size x M33X2.0 Metric Thread | 1-5/16" Hex | 90° Elbow | Brass | Pack of 2

Save $18.93

$124.64

$124.64 - $124.64

$124.64

$105.71

$105.71 - $105.71

$105.71

by Parker Hannifin
Hose Barb Fittings:Beaded Elbow to Metric Adaptor 169HB-X-MIX

Package Quantity: 2 Units

Specifications for Variant SKU: 169HB-16-MI33 Parker \| 2 \|
Series:	169HB Series
Shape (Orientation):	90° Elbow
Material(s):	Brass
Seal Material(s):	Fluorocarbon

Specification:
Product Features:	All brass construction Fluorocarbon O-rings NPTF, SAE straight thread, metric thread ends Reusable Clamp required
Markets:	Industrial Construction Heavy duty truck Mobile
Applications:	Air Lines Water Line Cooling Lines
Temperature Range:	-40° to +160° F (-40° to +71.1° C)
Pressure Range:	Up to 150 PSI (10.3 bar)


Part Number	ID Hose Size	Straight Thread	Hex	L	M	N	D
169HB-10-MI27	5/8"	M27X2.0	7/8"	1.41"	.78"	1.63"	.50"
169HB-16-MI27	1"	M27X2.0	1"	1.67"	.97"	1.68"	.71"
169HB-16-MI33	1"	M33X2.0	1-5/16"	1.75"	.97"	1.90"	.84"

Note: Fluorocarbon o-ring is standard
