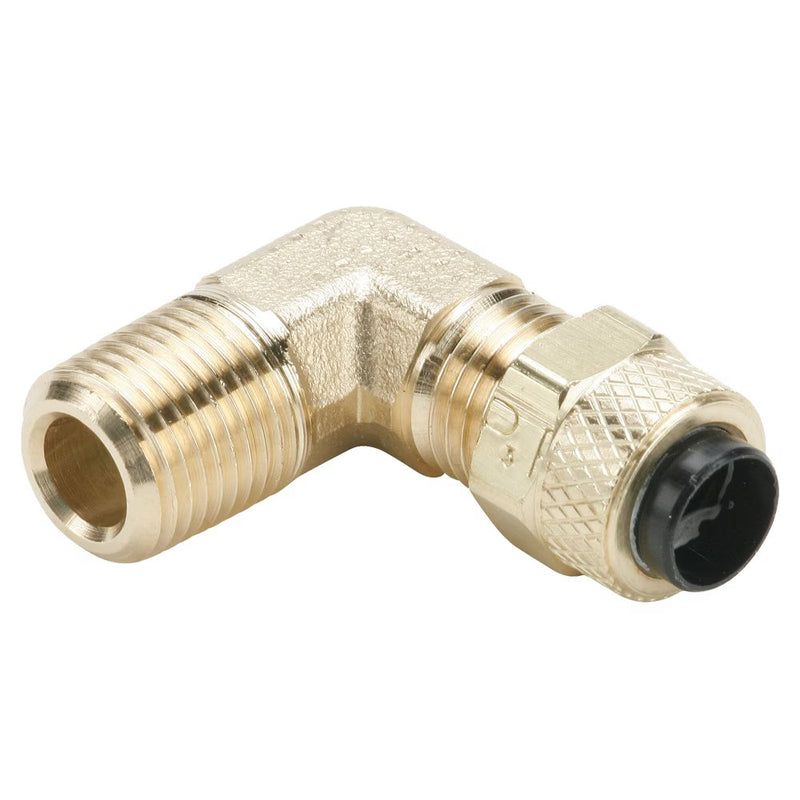

169P-4-2 by Parker | Poly-Tite Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread x 3/8" Thread | 90° Elbow | Brass | Pack of 100

169P-4-2 by Parker | Poly-Tite Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread x 3/8" Thread | 90° Elbow | Brass | Pack of 100

Save $276.91 Save $276.91
$692.27
$692.27 - $692.27
$692.27
$415.36
$415.36 - $415.36
$415.36

by Parker Hannifin
Poly-Tite Fittings:Male Elbow 169P

Package Quantity: 100 Units

Specifications for Variant SKU: 169P-4-2 Parker | 100 |
Series: 169P Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Acetal Copolymer
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (F)
169P-4-1 1/4" 1/16" 3/8"-24 .92" .58" .67" .130"
169P-4-2 1/4" 1/8" 3/8"-24 .84" .73" .75" .121"
169P-4-4 1/4" 1/4" 3/8"-24 .90" .79" .92" .125"
169P-4-6 1/4" 3/8" 3/8"-24 .93" .84" 1.08" .125"
169P-5-2 5/16" 1/8" 7/16"-24 .87" .73" .68" .144"
169P-6-2 3/8" 1/8" 1/2"-24 .93" .81" .73" .203"
169P-6-4 3/8" 1/4" 1/2"-24 .98" .86" 1.05" .203"
169P-6-6 3/8" 3/8" 1/2"-24 .98" .86" 1.08" .203"
169P-8-6 1/2" 3/8" 11/16"-24 1.12" 1.04" 1.13" .323"
