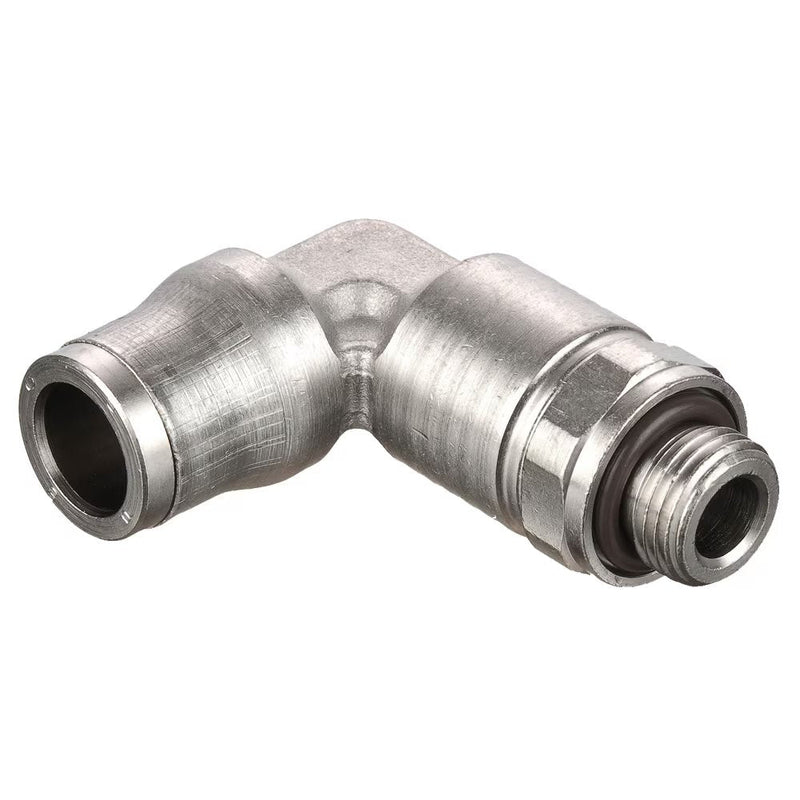

169PLMX-12M-6G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 12 mm Tube Size x 3/8" Male BSPP Threads | 22.00 mm Height | 90° Long Elbow | Electroless Nickel-Plated Brass | Pack of 5

Save $20.81

$152.94

$152.94 - $152.94

$152.94

$132.13

$132.13 - $132.13

$132.13

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:169PLMX Extended Male Elbow Metric Tube to BSPP or M5

Package Quantity: 5 Units

Specifications for Variant SKU: 169PLMX-12M-6G Parker \| 5 \|
Series:	169PLMX Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Long, Silicone Free

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Industrial Chemical Life Science Semi-conductors Automation Food Processing
Compatible Media:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A* Nylon FEP


Part Number	Tube Size	BSPP / M5	F	H	K	L
169PLMX-4M-M5	4 mm	M5X0.8	10 mm	27.50 mm	11.00 mm	18.00 mm
169PLMX-4M-2G	4 mm	1/8"	13 mm	25.50 mm	14.00 mm	18.00 mm
169PLMX-6M-2G	6 mm	1/8"	13 mm	31.00 mm	14.00 mm	18.00 mm
169PLMX-6M-4G	6 mm	1/4"	16 mm	30.50 mm	17.50 mm	21.50 mm
169PLMX-8M-2G	8 mm	1/8"	14 mm	33.50 mm	15.00 mm	23.50 mm
169PLMX-8M-4G	8 mm	1/4"	16 mm	34.00 mm	17.50 mm	23.50 mm
169PLMX-10M-4G	10 mm	1/4"	18 mm	42.00 mm	19.50 mm	29.00 mm
169PLMX-10M-6G	10 mm	3/8"	20 mm	41.00 mm	22.00 mm	29.00 mm
169PLMX-12M-4G	12 mm	1/4"	20 mm	47.00 mm	22.00 mm	31.00 mm
169PLMX-12M-6G	12 mm	3/8"	20 mm	46.00 mm	22.00 mm	31.00 mm
169PLMX-14M-8G	14 mm	1/2"	24 mm	49.00 mm	26.00 mm	34.00 mm
