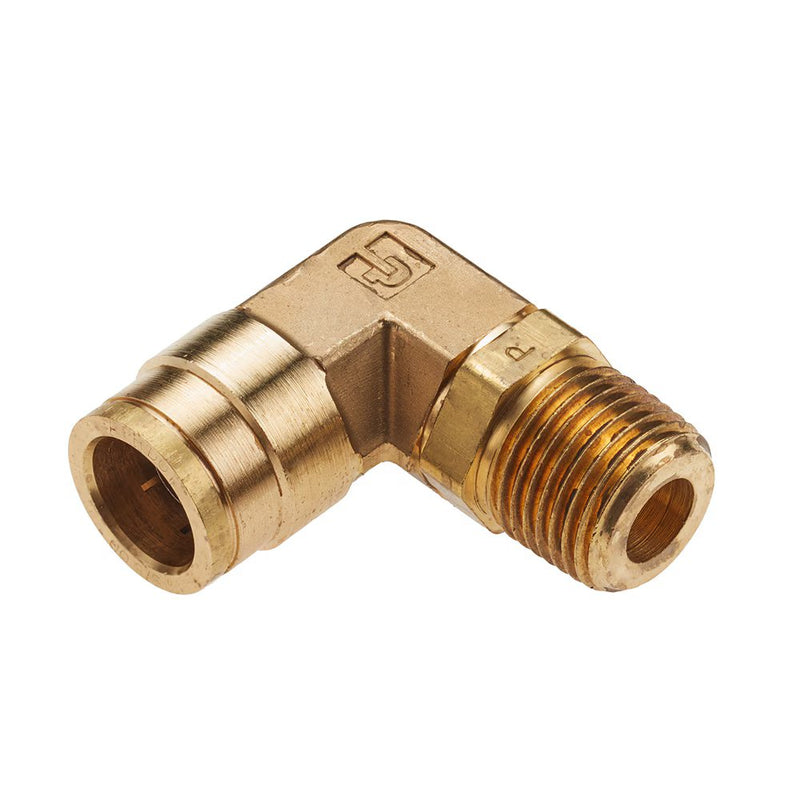

169PTC-8-6 by Parker | Threaded Fitting | 1/2" Swivel Push-to-Connect Connector x 3/8" Male NPT Pipe Thread | 11/16" Hex | 90° Elbow | Brass | Pack of 5

169PTC-8-6 by Parker | Threaded Fitting | 1/2" Swivel Push-to-Connect Connector x 3/8" Male NPT Pipe Thread | 11/16" Hex | 90° Elbow | Brass | Pack of 5

Save $83.20 Save $83.20
$208.00
$208.00 - $208.00
$208.00
$124.80
$124.80 - $124.80
$124.80

by Parker Hannifin
PTC Brass Fittings:Male Elbow 90° 169PTC

Package Quantity: 5 Units

Specifications for Variant SKU: 169PTC-8-6 Parker | 5 |
Series: 169PTC Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread L N Wrench Flats Hex (B)
169PTC-4-2 1/4" 1/8" .85" .96" 1/8" 9/16"
169PTC-4-4 1/4" 1/4" .85" 1.22" 1/2" 9/16"
169PTC-4-6 1/4" 3/8" .85" 1.22" 1/2" 11/16"
169PTC-6-2 3/8" 1/8" 1.02" 1.21" 9/16" 11/16"
169PTC-6-4 3/8" 1/4" 1.02" 1.33" 9/16" 11/16"
169PTC-6-6 3/8" 3/8" 1.02" 1.33" 9/16" 11/16"
169PTC-6-8 3/8" 1/2" 1.02" 1.33" 9/16" 7/8"
169PTC-8-4 1/2" 1/4" 1.16" 1.40" 11/16" 11/16"
169PTC-8-6 1/2" 3/8" 1.16" 1.42" 11/16" 11/16"
169PTC-8-8 1/2" 1/2" 1.16" 1.63" 11/16" 7/8"
169PTC-10-6 5/8" 3/8" 1.47" 1.41" 7/8" 7/8"
169PTC-10-8 5/8" 1/2" 1.47" 1.60" 7/8" 7/8"

*Add VS prefix to order with Vibra Seal
