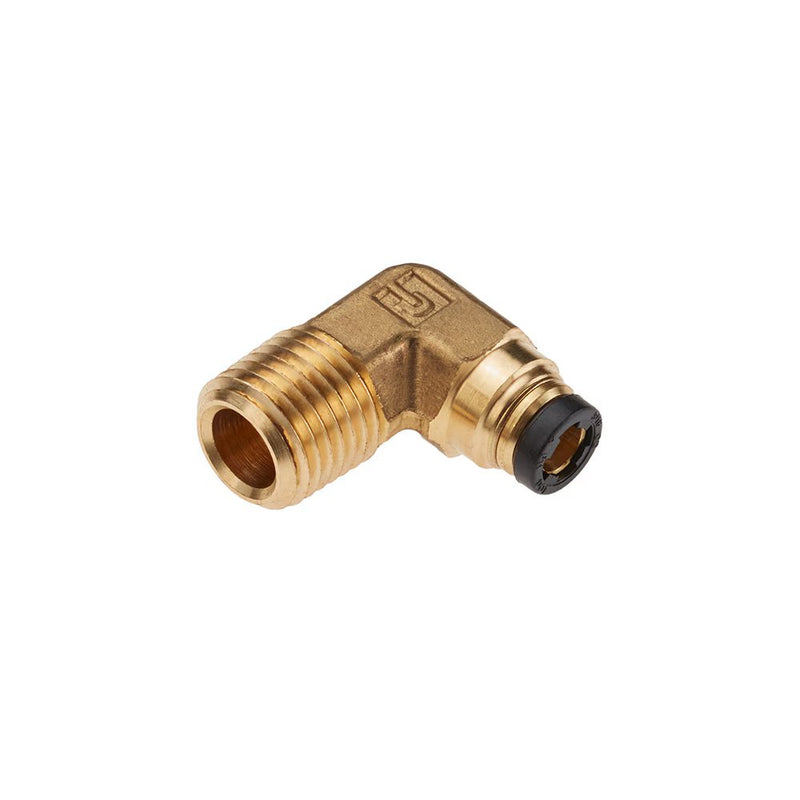

169PTCNS-3-2 by Parker | Threaded Fitting | 3/16" Rigid Push-to-Connect x 1/8" Male NPT Thread | 90° Elbow | Brass | Pack of 10

169PTCNS-3-2 by Parker | Threaded Fitting | 3/16" Rigid Push-to-Connect x 1/8" Male NPT Thread | 90° Elbow | Brass | Pack of 10

Save $116.35 Save $116.35
$290.88
$290.88 - $290.88
$290.88
$174.53
$174.53 - $174.53
$174.53

by Parker Hannifin
PTC Brass Fittings:Male Elbow Rigid 90° 169PTCNS

Package Quantity: 10 Units

Specifications for Variant SKU: 169PTCNS-3-2 Parker | 10 |
Series: 169PTCNS Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread L N Wrench Flats
169PTCNS-5/32-1* 5/32" 1/16" .79" .62" .40"
169PTCNS-5/32-2* 5/32" 1/8" .84" .65" .40"
169PTCNS-5/32-4* 5/32" 1/4" .76" .85" .50"
169PTCNS-3-2* 3/16" 1/8" .77" .65" .40"
169PTCNS-3-4* 3/16" 1/4" .77" .85" .50"
169PTCNS-4-2 1/4" 1/8" .84" .72" 1/2"
169PTCNS-4-4 1/4" 1/4" .85" .90" 1/2"
169PTCNS-4-6 1/4" 3/8" .85" 1.06" 1/2"
169PTCNS-6-2 3/8" 1/8" 1.05" .75" 9/16"
169PTCNS-6-4 3/8" 1/4" 1.05" .94" 9/16"
169PTCNS-6-6 3/8" 3/8" 1.02" .94" 9/16"
169PTCNS-6-8 3/8" 1/2" 1.06" 1.26" 11/16"
169PTCNS-8-4 1/2" 1/4" 1.16" 1.06" 11/16"
169PTCNS-8-6 1/2" 3/8" 1.16" 1.06" 11/16"
169PTCNS-8-8 1/2" 1/2" 1.16" 1.26" 11/16"
169PTCNS-10-6 5/8" 3/8" 1.79" 1.05" 7/8"
169PTCNS-10-8 5/8" 1/2" 1.79" 1.05" 7/8"
169PTCNS-12-8 3/4" 1/2" 1.61" 1.39" 1"
169PTCNS-12-12 3/4" 3/4" 1.61" 1.50" 1"

*5/32 and 3/16 with black button
