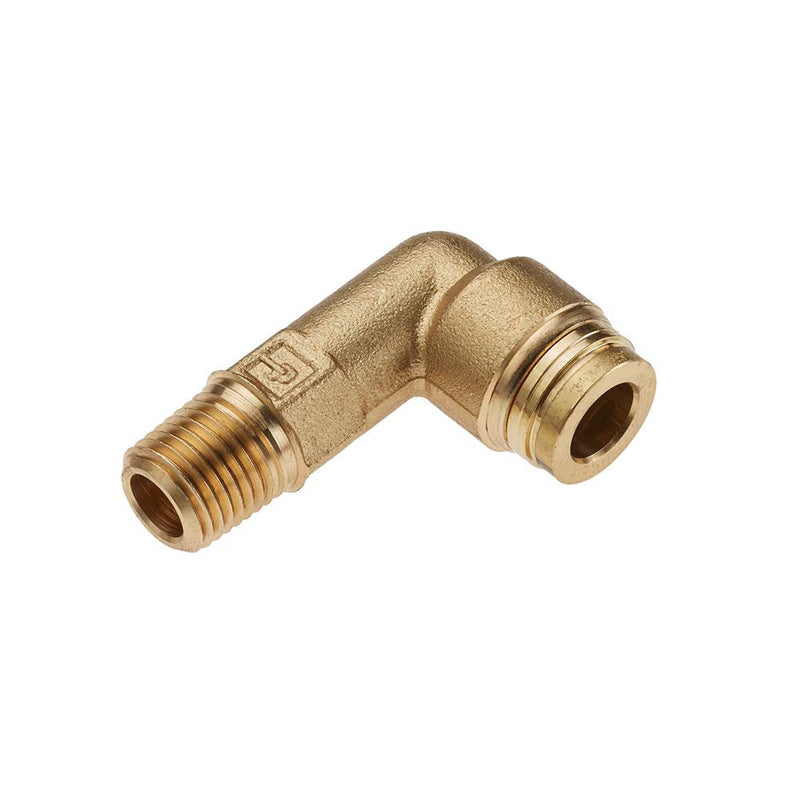

169PTCNSL-6-8 by Parker | Threaded Fitting | 3/8" Rigid Push-to-Connect x 1/2" Male NPT Thread | 90° Long Elbow | Brass | Pack of 10

Save $25.16

$307.69

$307.69 - $307.69

$307.69

$282.53

$282.53 - $282.53

$282.53

by Parker Hannifin
PTC Brass Fittings:Male Elbow Long Rigid 90° 169PTCNSL

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 169PTCNSL-6-8 Parker \| 10 \|
Series:	169PTCNSL Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Long

Specification:
Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Pipe Thread	L	N	Wrench Flats
169PTCNSL-6-4	3/8"	1/4"	1.01"	1.63"	9/16"
169PTCNSL-6-8	3/8"	1/2"	1.19"	2.50"	7/8"
169PTCNSL-6-6	3/8"	3/8"	1.19"	2.50"	7/8"
169PTCNSL-8-8	1/2"	1/2"	1.22"	2.50"	7/8"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
