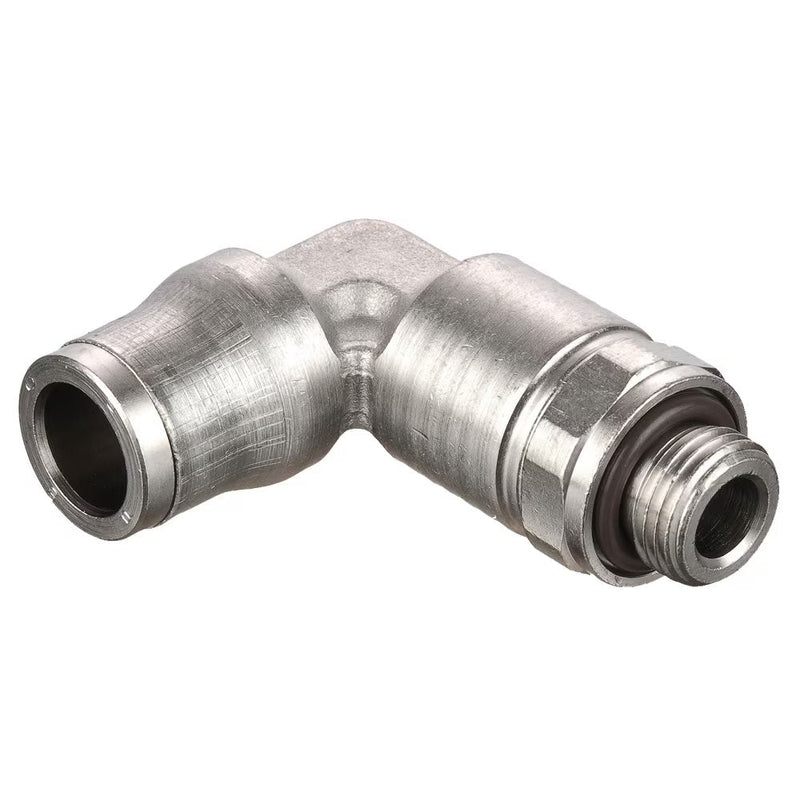

169PLMX-8M-4G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 8 mm Tube Size x 1/4" Male BSPP Threads | 17.50 mm Height | 90° Long Elbow | Electroless Nickel-Plated Brass | Pack of 10

169PLMX-8M-4G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 8 mm Tube Size x 1/4" Male BSPP Threads | 17.50 mm Height | 90° Long Elbow | Electroless Nickel-Plated Brass | Pack of 10

Save $100.97 Save $100.97
$252.42
$252.42 - $252.42
$252.42
$151.45
$151.45 - $151.45
$151.45

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:169PLMX Extended Male Elbow Metric Tube to BSPP or M5

Package Quantity: 10 Units

Specifications for Variant SKU: 169PLMX-8M-4G Parker | 10 |
Series: 169PLMX Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Long, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size BSPP / M5 F H K L
169PLMX-4M-M5 4 mm M5X0.8 10 mm 27.50 mm 11.00 mm 18.00 mm
169PLMX-4M-2G 4 mm 1/8" 13 mm 25.50 mm 14.00 mm 18.00 mm
169PLMX-6M-2G 6 mm 1/8" 13 mm 31.00 mm 14.00 mm 18.00 mm
169PLMX-6M-4G 6 mm 1/4" 16 mm 30.50 mm 17.50 mm 21.50 mm
169PLMX-8M-2G 8 mm 1/8" 14 mm 33.50 mm 15.00 mm 23.50 mm
169PLMX-8M-4G 8 mm 1/4" 16 mm 34.00 mm 17.50 mm 23.50 mm
169PLMX-10M-4G 10 mm 1/4" 18 mm 42.00 mm 19.50 mm 29.00 mm
169PLMX-10M-6G 10 mm 3/8" 20 mm 41.00 mm 22.00 mm 29.00 mm
169PLMX-12M-4G 12 mm 1/4" 20 mm 47.00 mm 22.00 mm 31.00 mm
169PLMX-12M-6G 12 mm 3/8" 20 mm 46.00 mm 22.00 mm 31.00 mm
169PLMX-14M-8G 14 mm 1/2" 24 mm 49.00 mm 26.00 mm 34.00 mm
