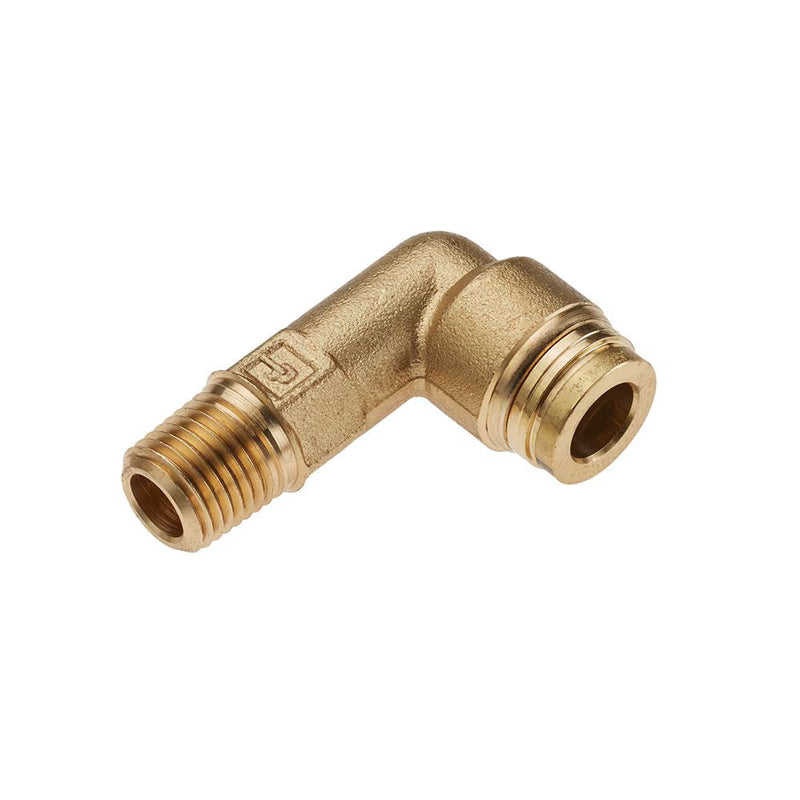

169PTCNSL-6-4 by Parker | Threaded Fitting | 3/8" Rigid Push-to-Connect x 1/4" Male NPT Thread | 90° Long Elbow | Brass | Pack of 10

Save $30.04

$367.91

$367.91 - $367.91

$367.91

$337.87

$337.87 - $337.87

$337.87

by Parker Hannifin
PTC Brass Fittings:Male Elbow Long Rigid 90° 169PTCNSL

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 169PTCNSL-6-4 Parker \| 10 \|
Series:	169PTCNSL Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Long

Specification:
Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Pipe Thread	L	N	Wrench Flats
169PTCNSL-6-4	3/8"	1/4"	1.01"	1.63"	9/16"
169PTCNSL-6-8	3/8"	1/2"	1.19"	2.50"	7/8"
169PTCNSL-6-6	3/8"	3/8"	1.19"	2.50"	7/8"
169PTCNSL-8-8	1/2"	1/2"	1.22"	2.50"	7/8"
