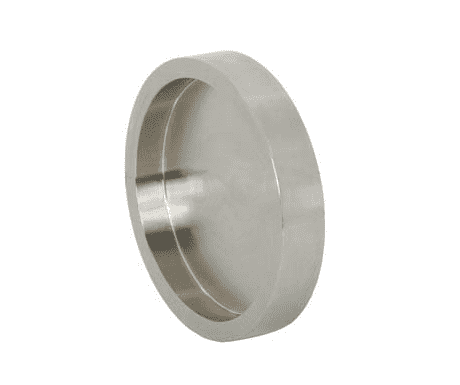

16AI-15I800R Dixon 316L Stainless Steel Sanitary Female I-line Solid End Cap - 8" Tube OD

16AI-15I800R Dixon Valve 316L Stainless Steel Sanitary Female I-line Solid End Cap - 8" Tube OD

$323.63 - $323.63
$323.63
$339.59
$339.59 - $339.59
$339.59

Dixon Sanitary I-Line End Caps - Female I-line Solid End Caps - 316L Stainless Steel
Specifications for Variant SKU: 16AI-15I800R Dixon
Ends Configuration: 8in Female I-LINE
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight
(Lbs.)
A B
16AI-15I100R 1" .500" 1.985" 1.0000
16AI-15I150R 1-1/2" .500" 1.985" 1.0000
16AI-15I200R 2" .562" 2.640" 0.6650
16AI-15I300R 3" .750" 3.870" 1.3100
16AI-15I400R 4" .750" 4.870" 4.0000
16AI-15I600R 6" .750" 7.495" 7.0000
16AI-15I800R 8" .880" 9.495" 12.3000
