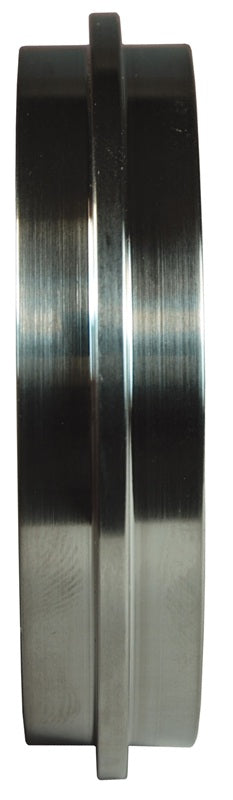

16AJP-G150 Dixon Valve John Perry Solid End Cap - 1-1/2" Tube OD - 304 Stainless Steel

16AJP-G150 Dixon Valve John Perry Solid End Cap - 1-1/2" Tube OD - 304 Stainless Steel

Save $7.05 Save $7.05
$17.62
$17.62 - $17.62
$17.62
$10.57
$10.57 - $10.57
$10.57

Dixon Sanitary Fittings John Perry Solid End Cap

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 16AJP-G150 Dixon
Material(s): 304 Stainless Steel
Features:
  • 3A sanitary finish ID and OD
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C D
16AJP-G100 16AJP-R100 1" 1.32" 1.13" 0.47" 1.16"
16AJP-G150 16AJP-R150 1-1/2" 1.85" 1.66" 0.48" 1.68"
16AJP-G200 16AJP-R200 2" 2.38" 2.19" 0.53" 2.19"
16AJP-G250 16AJP-R250 2-1/2" 2.91" 2.66" 0.55" 2.72"
16AJP-G300 16AJP-R300 3" 3.44" 3.19" 0.61" 3.22"
16AJP-G400 16AJP-R400 4" 4.51" 4.19" 0.69" 4.26"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
