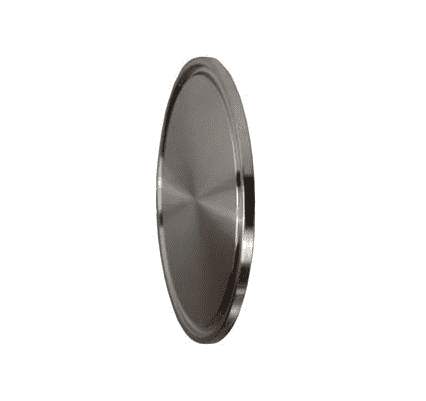

16AMP-G1200 Dixon 304 Stainless Steel Solid Sanitary End Cap - 12" Tube OD

16AMP-G1200 Dixon Valve 304 Stainless Steel Solid Sanitary End Cap - 12" Tube OD

Save $167.12 Save $167.12
$417.80
$417.80 - $417.80
$417.80
$250.68
$250.68 - $250.68
$250.68

Dixon Sanitary Clamp Caps - Solid End Caps - 304 Stainless Steel
Specifications for Variant SKU: 16AMP-G1200 Dixon
Ends Configuration: 12in Sanitary Clamp End
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • Specify if you are using a piping system or a tubing system when ordering.
Part Number Tube OD Dimensions (in)
Weight
(Lbs.)
A B
16AMP-G50-75 1/2" - 3/4" .187 .992 0.0350
16AMP-G100-150 1" - 1-1/2" .250 1.984 0.1770
16AMP-G200 2" .250 2.516 0.3000
16AMP-G250 2-1/2" .250 3.047 0.4550
16AMP-G300 3" .250 3.578 0.6300
16AMP-G400 4" .312 4.682 1.3000
16AMP-G600 6" .437 6.570 3.8500
16AMP-G800 8" .437 8.570 6.7100
16AMP-G1000 10" .437 10.570 10.4400
16AMP-G1200 12" .437 12.750 14.5000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
