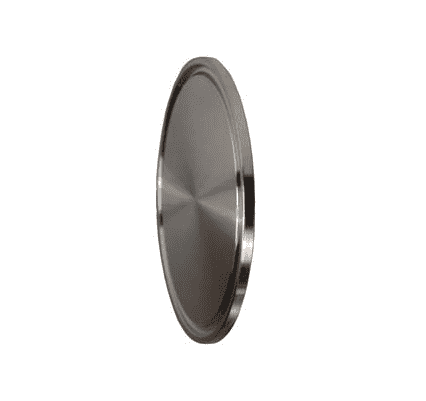

16AMP-R300 Dixon 316L Stainless Steel Solid Sanitary End Cap - 3" Tube OD

16AMP-R300 Dixon Valve 316L Stainless Steel Solid Sanitary End Cap - 3" Tube OD

Save $3.81 Save $3.81
$14.76
$14.76 - $14.76
$14.76
$10.95
$10.95 - $10.95
$10.95

Dixon Sanitary Clamp Caps - Solid End Caps - 316L Stainless Steel
Specifications for Variant SKU: 16AMP-R300 Dixon
Ends Configuration: 3in Sanitary Clamp End
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • Specify if you are using a piping system or a tubing system when ordering.
Part Number Tube OD Dimensions (in)
 Weight
(Lbs.)
A B
16AMP-R50-75 1/2" - 3/4" .187 .992 0.0310
16AMP-R100-150 1" - 1-1/2" .250 1.984 0.1770
16AMP-R200 2" .250 2.516 0.3000
16AMP-R250 2-1/2" .250 3.047 0.4500
16AMP-R300 3" .250 3.578 0.6100
16AMP-R400 4" .312 4.682 1.3000
16AMP-R500 5" .312 5.687 N/A
16AMP-R600 6" .437 6.570 3.8600
16AMP-R800 8" .437 8.570 7.0050
16AMP-R1000 10" .437 10.570 10.2900
16AMP-R1200 12" .437 12.750 14.8200
