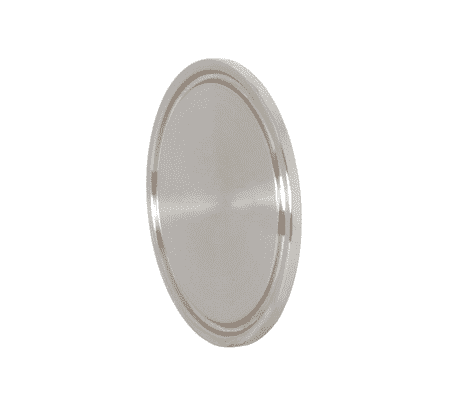

16AMV-R200 Dixon Valve 316L Stainless Steel Sanitary Schedule 5S and 10S Solid Pipe Size End Cap - 2" Pipe Size

16AMV-R200 Dixon Valve 316L Stainless Steel Sanitary Schedule 5S and 10S Solid Pipe Size End Cap - 2" Pipe Size

Save $5.55 Save $5.55
$13.87
$13.87 - $13.87
$13.87
$8.32
$8.32 - $8.32
$8.32

Dixon Sanitary Fittings Sanitary Pipe Size End Cap - Schedule 5S and 10S Solid End Cap - 316L Stainless Steel
Specifications for Variant SKU: 16AMV-R200 Dixon
Ends Configuration: 2in Female NPT
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • 3A sanitary finish ID and OD.
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Dimensions

 Weight (Lbs.)
A B C D
16AMV-R100 1" 1.980" 1.720" 0.250" 0.1100" 0.1770
16AMV-R150 1-1/2" 2.520" 2.220" 0.250" 0.110" 0.3000
16AMV-R200 2" 3.050" 2.780" 0.250" 0.110" 0.4500
16AMV-R250 2-1/2" 3.580" 3.280" 0.250" 0.110" 0.6100
16AMV-R300 3" 4.130" 3.810" 0.310" 0.110" 1.0200
16AMV-R400 4" 5.130" 4.810" 0.310" 0.110" 1.6450
16AMV-R600 6" 7.200" 6.880" 0.440" 0.220" 3.8600
16AMV-R800 8" - - - - 7.0000
