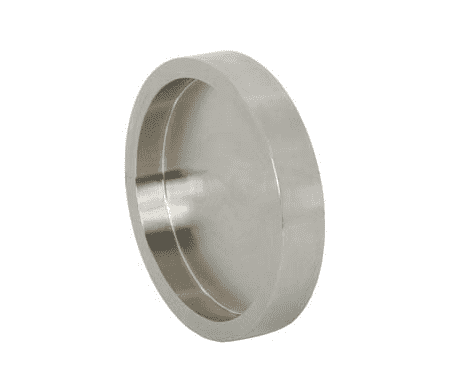

16AI-15I100R Dixon 316L Stainless Steel Sanitary Female I-line Solid End Cap - 1" Tube OD

16AI-15I100R Dixon Valve 316L Stainless Steel Sanitary Female I-line Solid End Cap - 1" Tube OD

Save $12.30 Save $12.30
$30.75
$30.75 - $30.75
$30.75
$18.45
$18.45 - $18.45
$18.45

Dixon Sanitary I-Line End Caps - Female I-line Solid End Caps - 316L Stainless Steel
Specifications for Variant SKU: 16AI-15I100R Dixon
Ends Configuration: 1in Female I-LINE
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight
(Lbs.)
A B
16AI-15I100R 1" .500" 1.985" 1.0000
16AI-15I150R 1-1/2" .500" 1.985" 1.0000
16AI-15I200R 2" .562" 2.640" 0.6650
16AI-15I300R 3" .750" 3.870" 1.3100
16AI-15I400R 4" .750" 4.870" 4.0000
16AI-15I600R 6" .750" 7.495" 7.0000
16AI-15I800R 8" .880" 9.495" 12.3000
