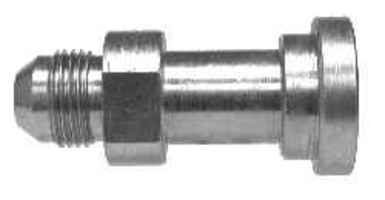

170088 Midland Hydraulic Code 61 Flange Adapter - 3/4-16 Male JIC 37° Flare x 1/2" Flange Size - Steel

170088 by Midland | Hydraulic Flange | 3/4-16 Male JIC 37° Flare x 1/2" Flange Size | Code 61 | Adapter | Steel

Save $2.00

$12.87

$12.87 - $12.87

$12.87

$10.87

$10.87 - $10.87

$10.87

Midland Industries
Hydraulic Flang Adapter: Code 61 JIC Flange Adapter - Steel

3000 PSI

Conforms to SAE J518.

Inventory @ Manufacturers Warehouse: 136 Units

Quantity

Specifications for Variant SKU: 170088 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male JIC, 1/2in Code 61 Flange
Material(s):	Steel
Applicable Specs & Approvals:	Applicable SAE Standards, SAE J518

Technical Info:
Midland Industries Hydraulic Flange Adapters Technical Info.PDF

Crossover Series:
6840	503


Part Number	Male JIC 37° Flare (1)	Male JIC 37° Flare Thread (1)	Code 61 Flange Size (2)
170088	1/2"	3/4-16	1/2"
1700812	1/2"	3/4-16	3/4"
17001212	3/4"	1-1/16-12	3/4"
17001216	3/4"	1-1/16-12	1"
17001612	1"	1-5/16-12	3/4"
17001616	1"	1-5/16-12	1"
17001620	1"	1-5/16-12	1-1/4"
17001624	1"	1-5/16-12	1-1/2"
17002024	1-1/4"	1-5/8-12	1-1/2"
17002032	1-1/4"	1-5/8-12	2"
17002420	1-1/2"	1-7/8-12	1-1/4"
17002424	1-1/2"	1-7/8-12	1-1/2"
17002432	1-1/2"	1-7/8-12	2"
17003232	2"	2-1/2-12	2"
17003224	2"	2-1/2-12	2-1/2"
17004040	2-1/2"	-	2-1/2"
