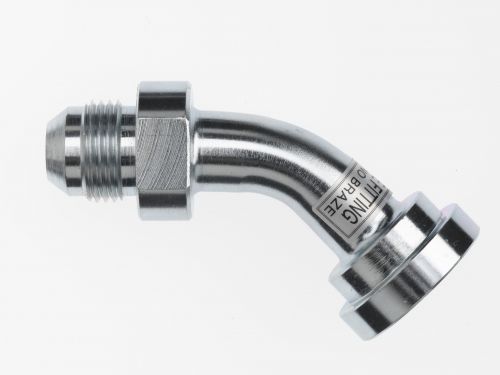

1703-20-16 by Brennan Inc. | -20 Male JIC x -16 Flange Code 61 | 45° Elbow | Steel

1703-20-16 by Brennan Inc. | -20 Male JIC x -16 Flange Code 61 | 45° Elbow | Steel

$73.43 - $73.43
$73.43
$93.17
$93.17 - $93.17
$93.17

Brennan Inc.
Flange Fittings: 1703 - Male JIC x Flange 45° Elbow (Code 61)
Specifications for Variant SKU: 1703-20-16 Brennan
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Male JIC, 1in Code 61 Flange
Material(s): Steel
Part Number Material TubeO.D. 1Thread 2Flange L1(in.) L2(in.) A/F(in.)
1703-08-08 Steel 1/2" 3/4-16" UNF 1/2" 2.720" 0.910" 7/8"
1703-08-12 Steel 1/2" 3/4-16" UNF 3/4" 2.720" 0.940" 7/8"
1703-12-12 Steel 3/4" 1-1/16-12" UN 3/4" 3.150" 1.020" 1-1/8"
1703-12-16 Steel 3/4" 1-1/16-12" UN 1" 3.150" 1.020" 1-1/8"
1703-12-20 Steel 3/4" 1-1/16-12" UN 1-1/4" 3.150" 1.020" 1-1/8"
1703-16-12 Steel 1" 1-5/16-12 UN 3/4" 3.660" 1.180" 1-3/8"
1703-16-16 Steel 1" 1-5/16-12 UN 1" 3.660" 1.180" 1-3/8"
1703-16-20 Steel 1" 1-5/16-12 UN 1-1/4" 3.660" 1.180" 1-3/8"
1703-16-24 Steel 1" 1-5/16-12 UN 1-1/2" 3.740" 1.260" 1-3/8"
1703-20-16 Steel 1-1/4" 1-5/8-12" UN 1" 3.860" 1.220" 1-11/16"
1703-20-20 Steel 1-1/4" 1-5/8-12" UN 1-1/4" 4.210" 1.380" 1-11/16"
1703-20-24 Steel 1-1/4" 1-5/8-12" UN 1-1/2" 4.250" 1.420" 1-11/16"
1703-24-16 Steel 1-1/2" 1-7/8-12" 1" 4.165" 1.200" 2.00"
1703-24-20 Steel 1-1/2" 1-7/8-12" UN 1-1/4" 4.700" 1.460" 2.00"
1703-24-24 Steel 1-1/2" 1-7/8-12" UN 1-1/2" 4.960" 1.690" 2"
1703-24-32 Steel 1-1/2" 1-7/8-12" UN 2" 5.120" 1.810" 2"
1703-32-32 Steel 2" 2-1/2-12 UN 2" 6.220" 2.170" 2-3/4"

1703-12-12-FG Forged Steel 3/4" 1-1/16-12" UN 3/4" 1.280" 1.580" 1.0625"
1703-16-16-FG Forged Steel 1" 1-5/16-12 UN 1" 1.470" 1.850" 1.3125"
1703-20-20-FG Forged Steel 1-1/4" 1-5/8-12" UN 1-1/4" 1.590" 2.040" 1.625"
1703-24-24-FG Forged Steel 1-1/2" 1-7/8-12" UN 1-1/2" 1.780" 2.380" 1-7/8
1703-32-32-FG Forged Steel 2" 2-1/2-12 UN 2" 2.220" 3.000" 2.500"

1703-08-08-SS Stainless Steel 1/2" 3/4-16" UNF 1/2" 2.720" 0.910" 7/8"
1703-08-12-SS Stainless Steel 1/2" 3/4-16" UNF 3/4" 2.720" 0.940" 7/8"
1703-12-12-SS Stainless Steel 3/4" 1-1/16-12" UN 3/4" 3.150" 1.020" 1-1/8"
1703-12-16-SS Stainless Steel 3/4" 1-1/16-12" UN 1" 3.150" 1.020" 1-1/8"
1703-12-20-SS Stainless Steel 3/4" 1-1/16-12" UN 1-1/4" 3.150" 1.020" 1-1/8"
1703-16-12-SS Stainless Steel 1" 1-5/16-12 UN 3/4" 3.660" 1.180" 1-3/8"
1703-16-16-SS Stainless Steel 1" 1-5/16-12 UN 1" 3.660" 1.180" 1-3/8"
1703-16-20-SS Stainless Steel 1" 1-5/16-12 UN 1-1/4" 3.660" 1.180" 1-3/8"
1703-16-24-SS Stainless Steel 1" 1-5/16-12 UN 1-1/2" 3.740" 1.260" 1-3/8"
1703-20-16-SS Stainless Steel 1-1/4" 1-5/8-12" UN 1" 3.860" 1.220" 1-11/16"
1703-20-20-SS Stainless Steel 1-1/4" 1-5/8-12" UN 1-1/4" 4.210" 1.380" 1-11/16"
1703-20-24-SS Stainless Steel 1-1/4" 1-5/8-12" UN 1-1/2" 4.250" 1.420" 1-11/16"
1703-24-20-SS Stainless Steel 1-1/2" 1-7/8-12" UN 1-1/4" 4.700" 1.460" 2.00"
1703-24-24-SS Stainless Steel 1-1/2" 1-7/8-12" UN 1-1/2" 4.960" 1.690" 2"
1703-24-32-SS Stainless Steel 1-1/2" 1-7/8-12" UN 2" 5.120" 1.810" 2"
1703-32-24-SS Stainless Steel 2" 2-1/2-12 UN 1-1/2" 6.220" 2.170" 2.750"
1703-32-32-SS Stainless Steel 2" 2-1/2-12 UN 2" 6.220" 2.170" 2-3/4"
