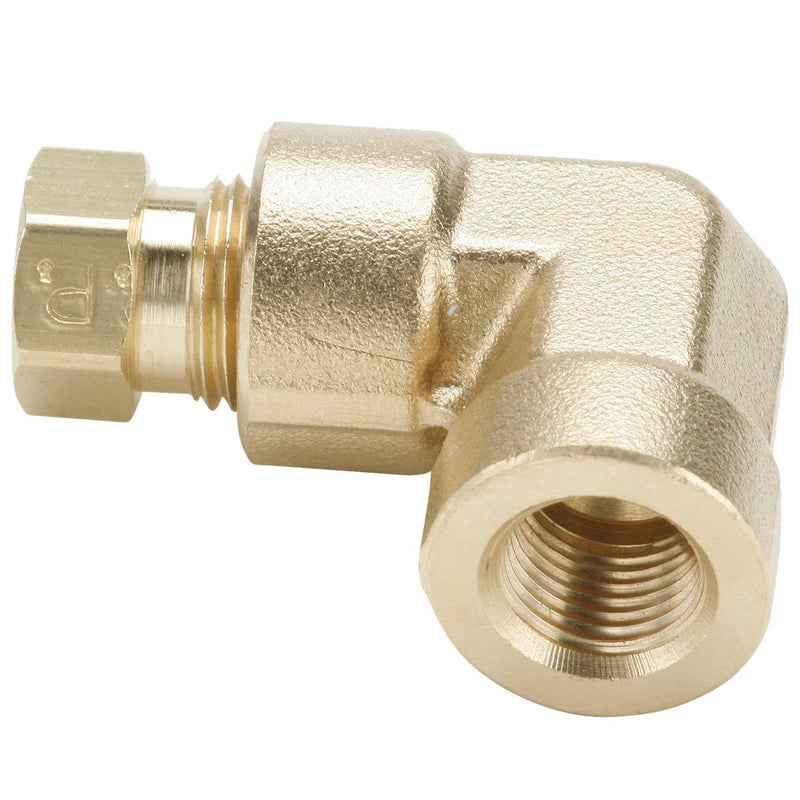

170HD-4-2 by Parker | Hi-Duty Fittings | 1/4" Tube Size x 1/8" Female Pipe Thread | Min. Orifice Size: .187" | .500" Hex | 90° Elbow | Brass | Pack of 5

170HD-4-2 by Parker | Hi-Duty Fittings | 1/4" Tube Size x 1/8" Female Pipe Thread | Min. Orifice Size: .187" | .500" Hex | 90° Elbow | Brass | Pack of 5

Save $58.05 Save $58.05
$145.13
$145.13 - $145.13
$145.13
$87.08
$87.08 - $87.08
$87.08

by Parker Hannifin
Hi-Duty Flareless Tube Fittings:Female Elbow 170HD

Package Quantity: 5 Units

Specifications for Variant SKU: 170HD-4-2 Parker | 5 |
Series: 170HD Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: Fuel Grade
Product Features:
  • All brass construction
  • Two piece fitting
  • Higher pressure rating
  • Easy assembly
Markets:
  • Mobile
  • Industrial
  • Compressors
  • Lubrication
Applications:
  • Lubrication Lines
  • Coolant Lines
  • Oil Lines
  • Engines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Seamless Steel
  • Thermoplastic Tubing
Part Number Tube Size Pipe Thread Minimum Orifice Size A B Hex (C) D
170HD-2-2 1/8" 1/8" .093" 1.005" .690" .500" .750"
170HD-4-2 1/4" 1/8" .187" 1.084" .687" .500" .750"
170HD-4-4 1/4" 1/4" .187" 1.234" .843" .562" .875"
170HD-6-2 3/8" 1/8" .312" 1.281" .875" .562" .937"
170HD-6-4 3/8" 1/4" .312" 1.376" .970" .615" 1.093"
170HD-6-6 3/8" 3/8" .312" 1.526" 1.120" .693" 1.150"
170HD-8-6 1/2" 3/8" .437" 1.481" 1.062" .740" 1.281"
