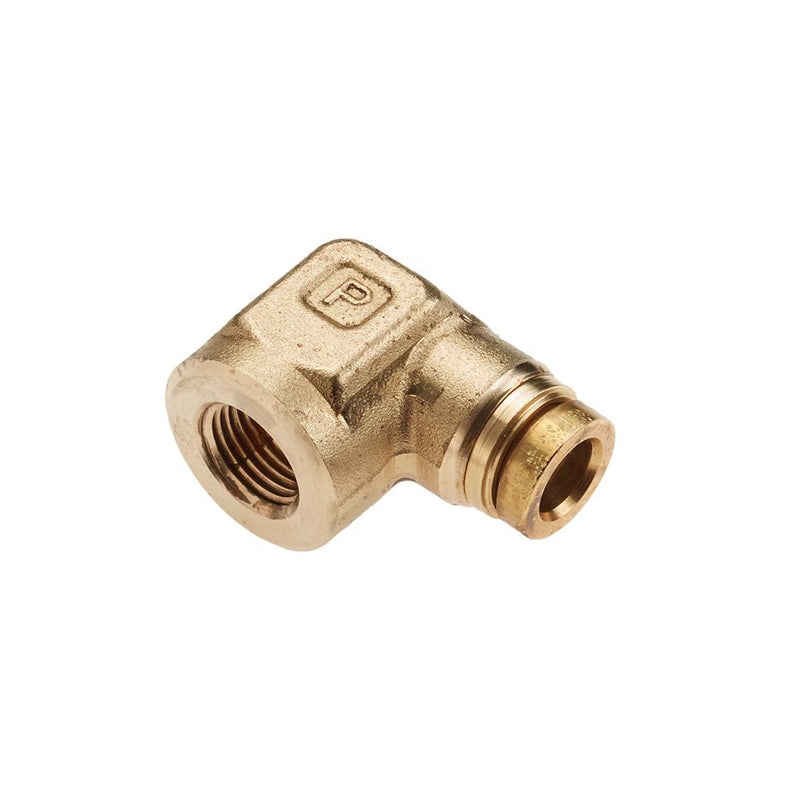

170PTCNS-4-2 by Parker | Threaded Fitting | 1/4" Rigid Push-to-Connect x 1/8" Female NPT Thread | 90° Elbow | Brass | Pack of 5

170PTCNS-4-2 by Parker | Threaded Fitting | 1/4" Rigid Push-to-Connect x 1/8" Female NPT Thread | 90° Elbow | Brass | Pack of 5

Save $45.91 Save $45.91
$114.78
$114.78 - $114.78
$114.78
$68.87
$68.87 - $68.87
$68.87

by Parker Hannifin
PTC Brass Fittings:Female Elbow Rigid 90° 170PTCNS

Package Quantity: 5 Units

Specifications for Variant SKU: 170PTCNS-4-2 Parker | 5 |
Series: 170PTCNS Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread L N Wrench Flats
170PTCNS-4-2 1/4" 1/8" .84 .56" 11/16"
170PTCNS-4-4 1/4" 1/4" .91 .67" 11/16"
170PTCNS-6-2 3/8" 3/8" 1.07 .51" 9/16"
170PTCNS-6-4 3/8" 1/4" 1.07 .84" 9/16"
170PTCNS-6-6 3/8" 3/8" 1.24 .69" 7/8"
170PTCNS-8-4 1/2" 1/4" 1.25 .75" 11/16"
170PTCNS-8-6 1/2" 3/8" 1.36 .80" 11/16"
170PTCNS-8-8 1/2" 1/2" 1.63 .97" 1"
