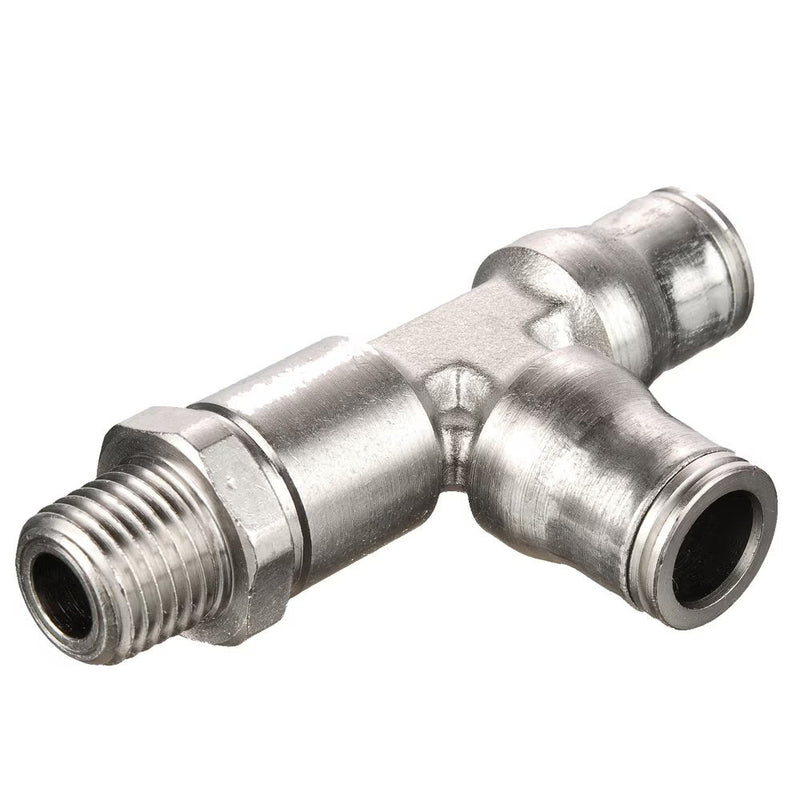

171PLM-4M-2 by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 5/32" Tube Size x 1/8" Male NPT Threads | .47" Height | .91 mm Width | Tee | Electroless Nickel-Plated Brass | Pack of 10

171PLM-4M-2 by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 5/32" Tube Size x 1/8" Male NPT Threads | .47" Height | .91 mm Width | Tee | Electroless Nickel-Plated Brass | Pack of 10

Save $10.43 Save $10.43
$114.71
$114.71 - $114.71
$114.71
$104.28
$104.28 - $104.28
$104.28

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:171PLM Male Run Tee Inch Tube to Tube to NPT, UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 171PLM-4M-2 Parker | 10 |
Series: 171PLM Series
Shape (Orientation): Tee
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size NPT / UNF F H1 H2 K L
171PLM-4M-2 5/32" 1/8" 11 mm .71" .77" .47" .91"
171PLM-6-4 3/8" 1/4" 18 mm 1.14" 1.20" .77" 1.48"
171PLM-6-6 3/8" 3/8" 18 mm 1.14" 1.28" .77" 1.48"
171PLM-6-8 3/8" 1/2" 22 mm 1.14" 1.20" .94" 1.48"
171PLM-8-6 1/2" 3/8" 22 mm 1.22" 1.46" .94" 1.61"
