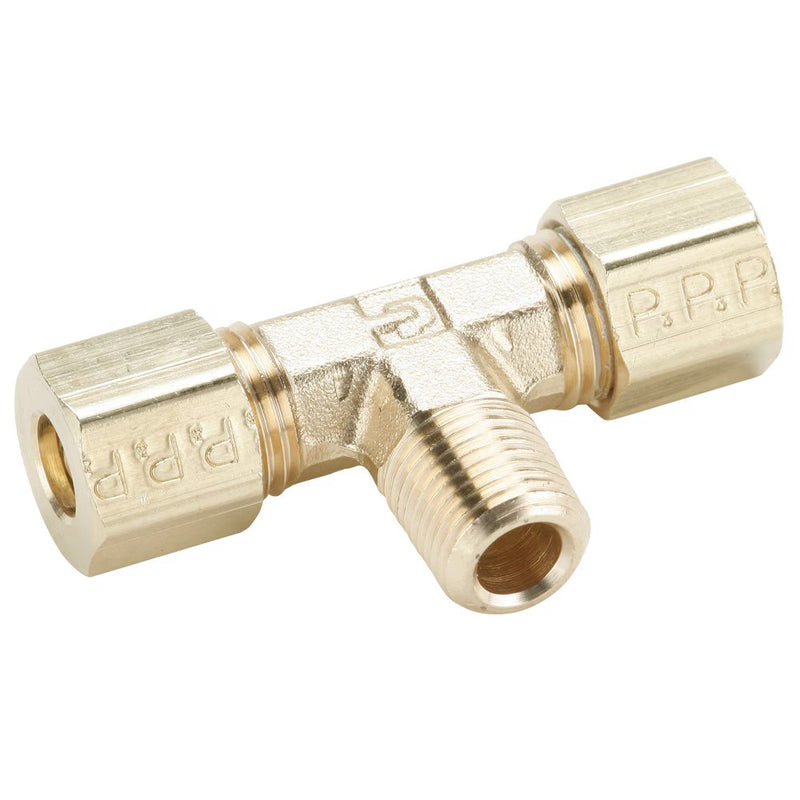

172C-4-2 by Parker | Compression Fitting | 1/4" Tube Size x 1/8" Male Pipe Thread x 7/16" Thread | 1.72" Length | Tee | Brass | Pack of 10

172C-4-2 by Parker | Compression Fitting | 1/4" Tube Size x 1/8" Male Pipe Thread x 7/16" Thread | 1.72" Length | Tee | Brass | Pack of 10

Save $7.76 Save $7.76
$85.32
$85.32 - $85.32
$85.32
$77.56
$77.56 - $77.56
$77.56

by Parker Hannifin
Compression Fittings:Male Branch Tee 172C

Package Quantity: 10 Units

Specifications for Variant SKU: 172C-4-2 Parker | 10 |
Series: 172C Series
Shape (Orientation): Tee
Material(s): Brass
Special Properties: UL Listed
Product Features:
  • Meets functional requirements of SAE J-512
  • UL Listed for flammable liquid
  • Brass or acetal sleeve available
  • No tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
172C-2-2 1/8" 1/8" 5/16"-24 .82" .61" .67" .094"
172C-3-2 3/16" 1/8" 3/8"-24 .86" .61" .67" .125"
172C-4-2 1/4" 1/8" 7/16"-24 .86" .61" .74" .188"
172C-4-4 1/4" 1/4" 7/16"-24 .93" .69" .92" .188"
172C-6-2 3/8" 1/8" 9/16"-24 1.03" .75" .75" .234"
172C-6-4 3/8" 1/4" 9/16"-24 1.09" .77" .92" .312"
172C-6-6 3/8" 3/8" 9/16"-24 1.09" .93" 1.00" .312"
172C-8-6 1/2" 3/8" 11/16"-20 1.34" .93" 1.10" .406"
