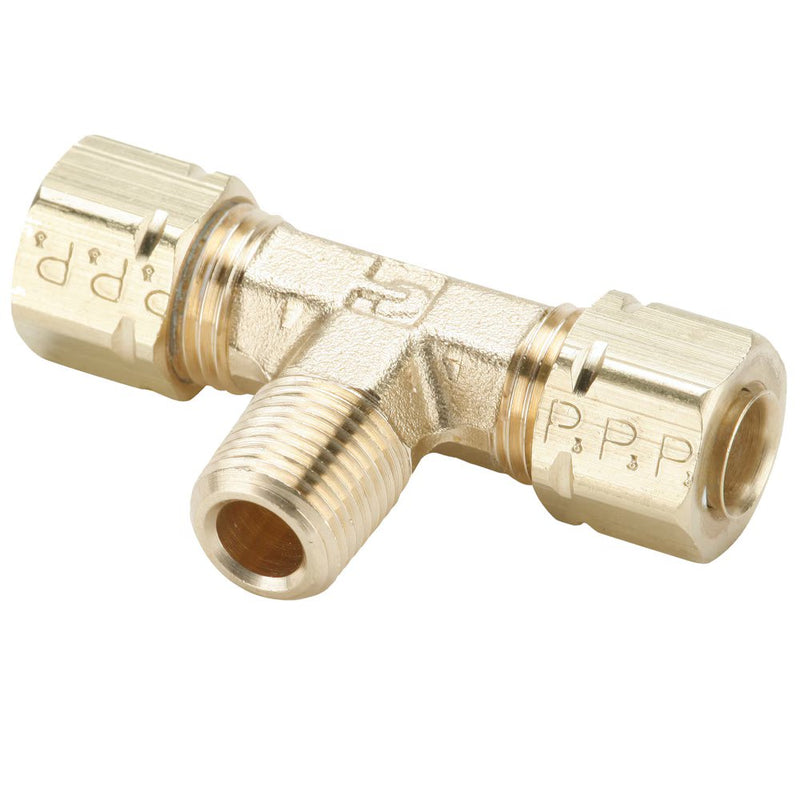

172CA-8-6 by Parker | Compress-Align® Fittings | 1/2" Tube Size x 3/8" Male Pipe Thread x 11/16" Thread | 2.30" Length | Tee | Brass | Pack of 10

172CA-8-6 by Parker | Compress-Align® Fittings | 1/2" Tube Size x 3/8" Male Pipe Thread x 11/16" Thread | 2.30" Length | Tee | Brass | Pack of 10

Save $20.66 Save $20.66
$227.23
$227.23 - $227.23
$227.23
$206.57
$206.57 - $206.57
$206.57

by Parker Hannifin
Compress-Align® Fittings:Male Branch Tee 172CA

Package Quantity: 10 Units

Specifications for Variant SKU: 172CA-8-6 Parker | 10 |
Brand: Compress-Align
Series: 171CA Series
Shape (Orientation): Tee
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
172CA-2-2 1/8" 1/8" 5/16"-24 .84" .61" .67" .093"
172CA-3-2 3/16" 1/8" 3/8"-24 .83" .61" .67" .125"
172CA-4-2 1/4" 1/8" 7/16"-24 .84" .61" .74" .188"
172CA-4-4 1/4" 1/4" 7/16"-24 .93" .69" .92" .188"
172CA-6-2 3/8" 1/8" 9/16"-24 .97" .75" .75" .234"
172CA-6-4 3/8" 1/4" 9/16"-24 .99" .77" .92" .312"
172CA-6-6 3/8" 3/8" 9/16"-24 1.07" .81" 1.00" .312"
172CA-8-6 1/2" 3/8" 11/16"-20 1.15" .93" 1.10" .406"
172CA-12-12 3/4" 3/4" 1"-18 1.67" 1.27" 1.50" .562"
