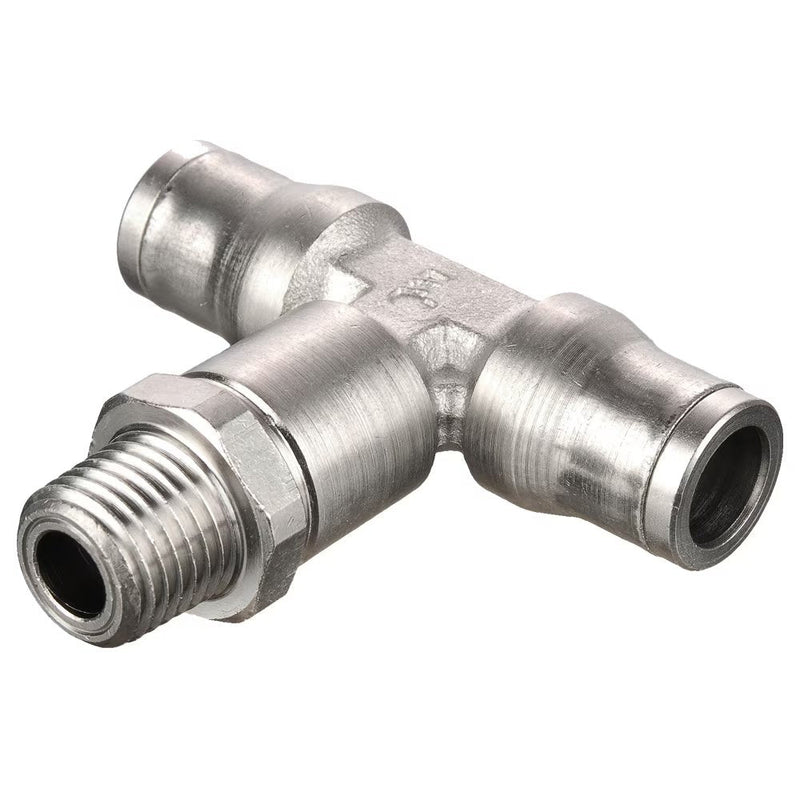

172PLM-8M-2R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 8 mm Tube Size x 1/8" Male BSPT Threads | 47 mm Length | 15.00 mm Height | Tee | Electroless Nickel-Plated Brass | Pack of 10

Save $26.16

$203.23

$203.23 - $203.23

$203.23

$177.07

$177.07 - $177.07

$177.07

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:172PLM Male Branch Tee Metric Tube to BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: 172PLM-8M-2R Parker \| 10 \|
Series:	172PLM Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Industrial Chemical Life Science Semi-conductors Automation Food Processing
Compatible Media:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A* Nylon FEP


Part Number	Tube Size	BSPT	F	H	K	L
172PLM-4M-2R	4 mm	1/8"	10 mm	24.50 mm	11.00 mm	18.00 mm
172PLM-6M-2R	6 mm	1/8"	13 mm	29.50 mm	14.00 mm	21.50 mm
172PLM-6M-4R	6 mm	1/4"	14 mm	30.50 mm	15.00 mm	21.50 mm
172PLM-8M-2R	8 mm	1/8"	14 mm	32.50 mm	15.00 mm	23.50 mm
172PLM-8M-4R	8 mm	1/4"	14 mm	34.00 mm	15.00 mm	23.50 mm
172PLM-10M-4R	10 mm	1/4"	18 mm	39.00 mm	19.50 mm	29.00 mm
172PLM-10M-6R	10 mm	3/8"	18 mm	41.00 mm	19.50 mm	29.00 mm
172PLM-12M-6R	12 mm	3/8"	21 mm	46.50 mm	23.00 mm	31.00 mm
172PLM-14M-8R	14 mm	1/2"	22 mm	50.50 mm	24.00 mm	34.00 mm
