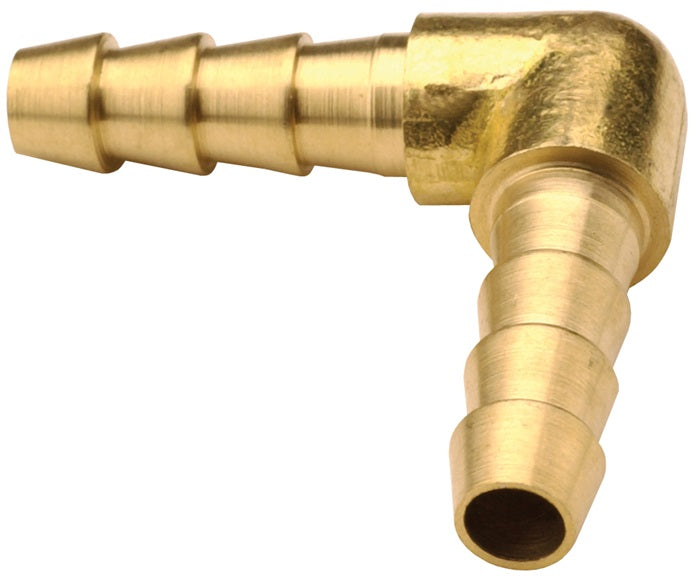

1770806C by Dixon Valve | Hose Mender / Splicer Reducer | 90° Elbow | 1/2" Hose ID x 3/8" Hose ID | Brass

1770806C by Dixon Valve | Hose Mender / Splicer Reducer | 90° Elbow | 1/2" Hose ID x 3/8" Hose ID | Brass

Save $4.52 Save $4.52
$8.93
$8.93 - $8.93
$8.93
$4.41
$4.41 - $4.41
$4.41

Dixon Valve
Hose Mender / Splicer | 90° Elbow | Hose Barb x Hose Barb
Specifications for Variant SKU: 1770806C Dixon
Series: 177 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb, 3/8in Hose Barb, Some Ends Match
Material(s): Brass
Construction:
  • Forged.
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Brass 304 Stainless Steel Hose I.D.
Previous
Part Number		 Part Number Previous
Part Number		 Part Number
177-0202 1770202C - - 1/8" x 1/8"
177-0303 1770303C - - 3/16" x 3/16"
177-0402 1770402C - - 1/4" x 1/8"
177-0404 1770404C 177-0404SS 1770404SS 1/4" x 1/4"
177-0505 1770505C - - 5/16" x 5/16"
177-0604 1770604C - - 3/8" x 1/4"
177-0606 1770606C 177-0606SS 1770606SS 3/8" x 3/8"
177-0806 1770806C - - 1/2" x 3/8"
177-0808 1770808C 177-0808SS 1770808SS 1/2" x 1/2"
177-1010 1771010C - - 5/8" x 5/8"
177-1208 1771208C - - 3/4" x 1/2"
177-1212 1771212C - - 3/4" x 3/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
